Triggering on FlexRay Events

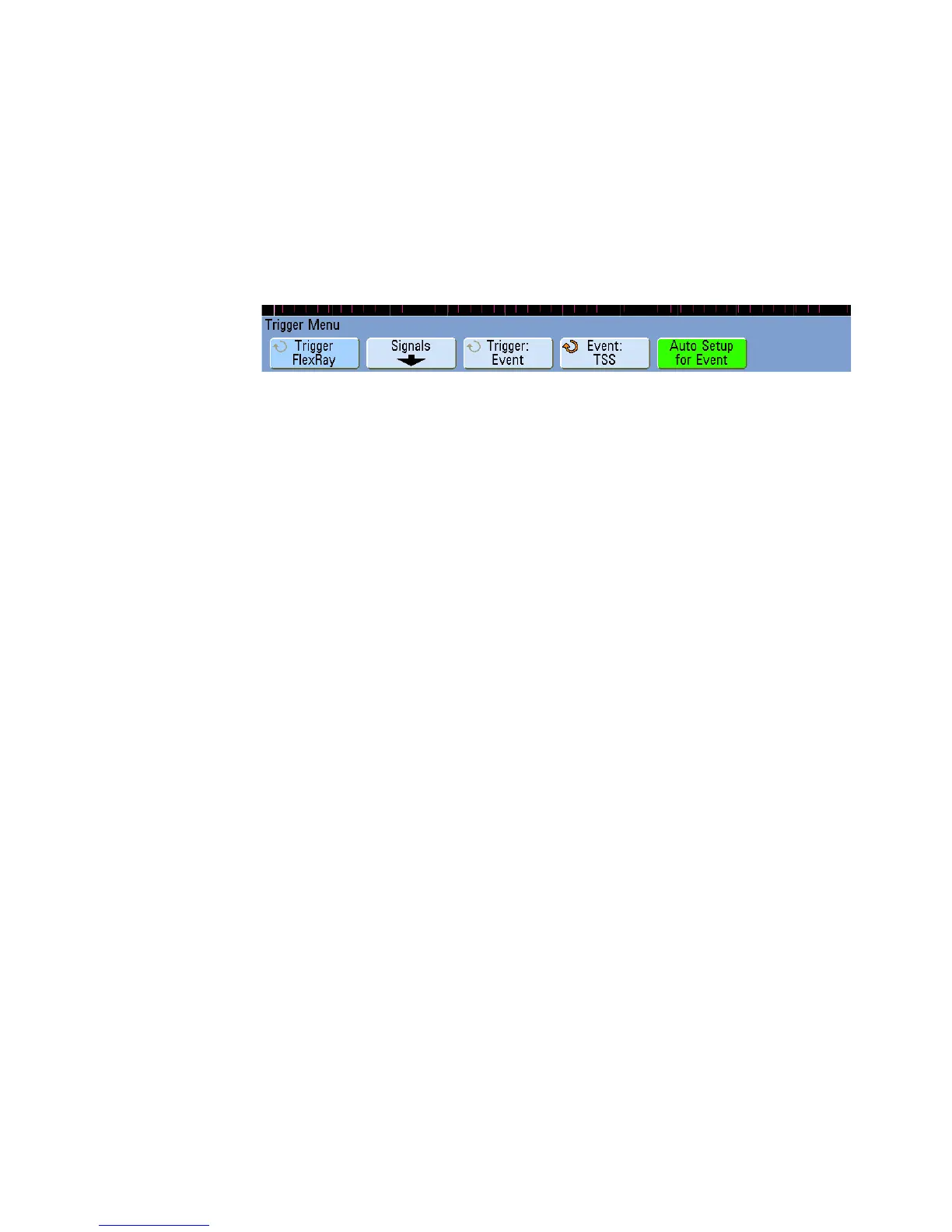

1 Press [Trigger]; then, select the FlexRay trigger type.
2 In the Trigger Menu press Trigger; then, select Event.
3 Press Event; then, select the event type:
• Wake-up
• TSS - Transmission Start Sequence
• BSS - ByteStart Sequence
• FES/DTS - Frame End or Dynamic Trailing Sequence
4 Press Auto Setup for Event.
This automatically configures oscilloscope settings (as shown on the
display) for the selected event trigger.
