Displaying Waveforms 3
InfiniiVision 7000B Series Oscilloscopes User’s Guide 89
Using Labels
You can define labels and assign them to each analog input channel, or
you can turn labels off to increase the waveform display area. Labels can
also be applied to digital channels on MSO models.
To turn the label display on or off
1 Press the [Label] key on the front panel.
This turns on display labels for the analog and digital channels. When
the [Label] key is illuminated, the labels for displayed channels are

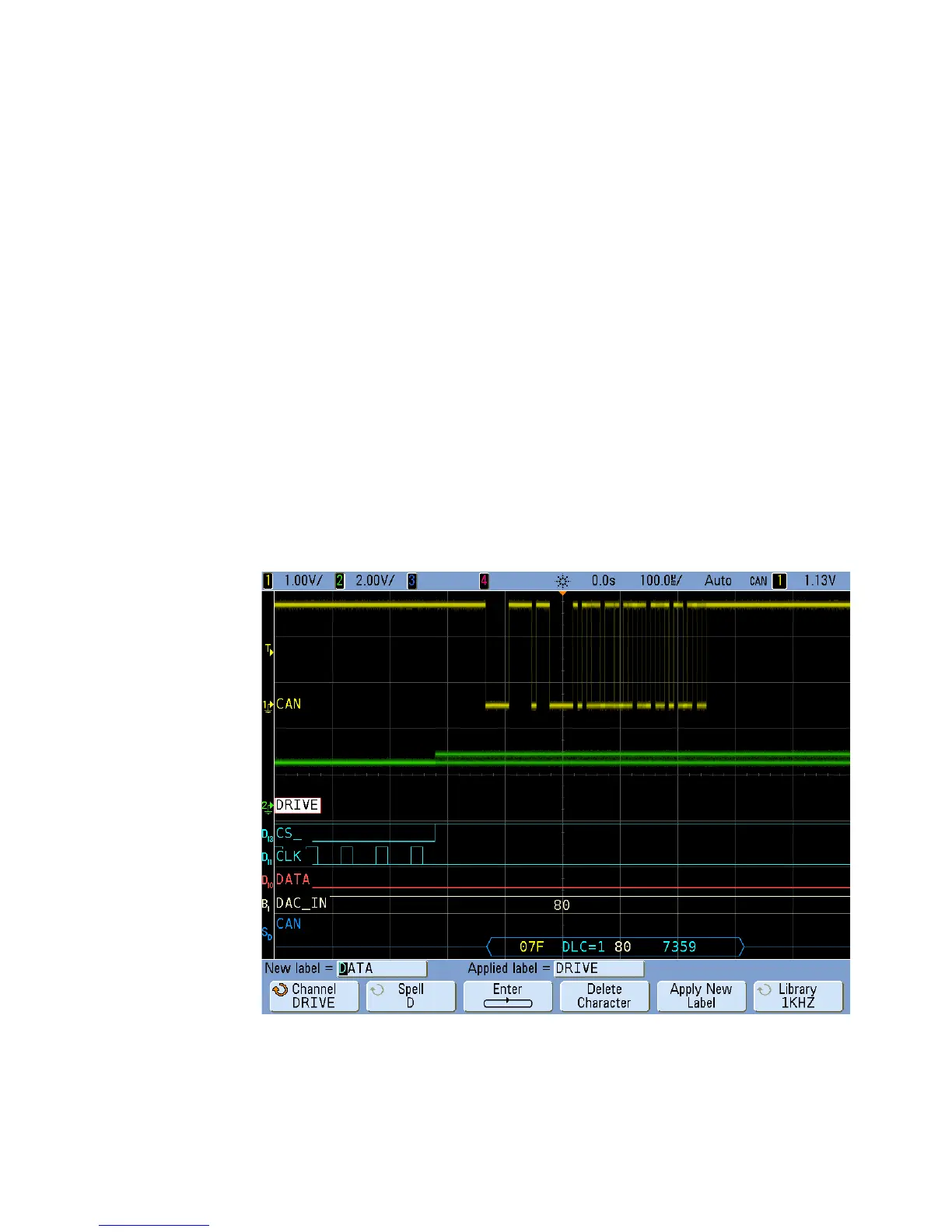

displayed at the left edge of the displayed traces. The figure below
shows an example of the default labels assigned when you turn the
label display on. The channel labels default to their channel number.
2 To turn the labels off, press the [Label] key until it is not illuminated.
