1Getting Started
32 InfiniiVision 7000B Series Oscilloscopes User’s Guide
Input a Waveform and AutoScale
Use [AutoScale] to automatically configure the oscilloscope to best display
the input signals.
1 Connect an oscilloscope probe from channel 1 to the Probe Comp
terminal on the front panel.
2 Connect the probe’s ground lead to the ground terminal (next to the
Probe Comp terminal).
3 Press [AutoScale].
4 If you want to return to the oscilloscope settings that existed before,
press Undo AutoScale.
5 If you want to change the channels autoscaled or preserve the
acquisition mode during autoscale, press Channels or Acq Mode.
Theses are the same softkeys that appear in the AutoScale Preferences
Menu. See “To set AutoScale preferences” on page 385.

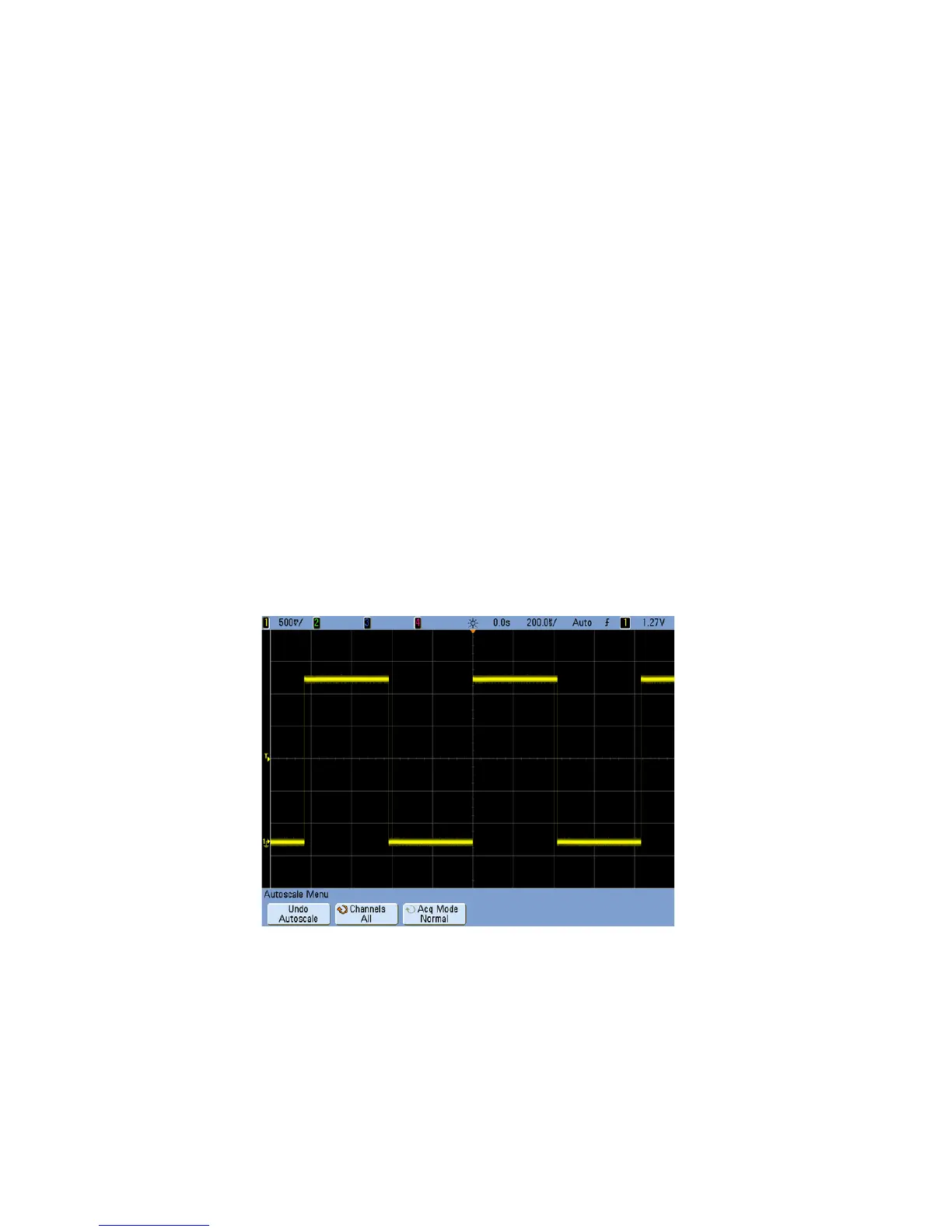

6 You should see a waveform on the oscilloscope’s display similar to this:
If you see the waveform, but the square wave is not shaped correctly as
shown above, perform the procedure “Compensating Passive Probes” on
page 56.
