Digital Channels 17
InfiniiVision 7000B Series Oscilloscopes User’s Guide 363

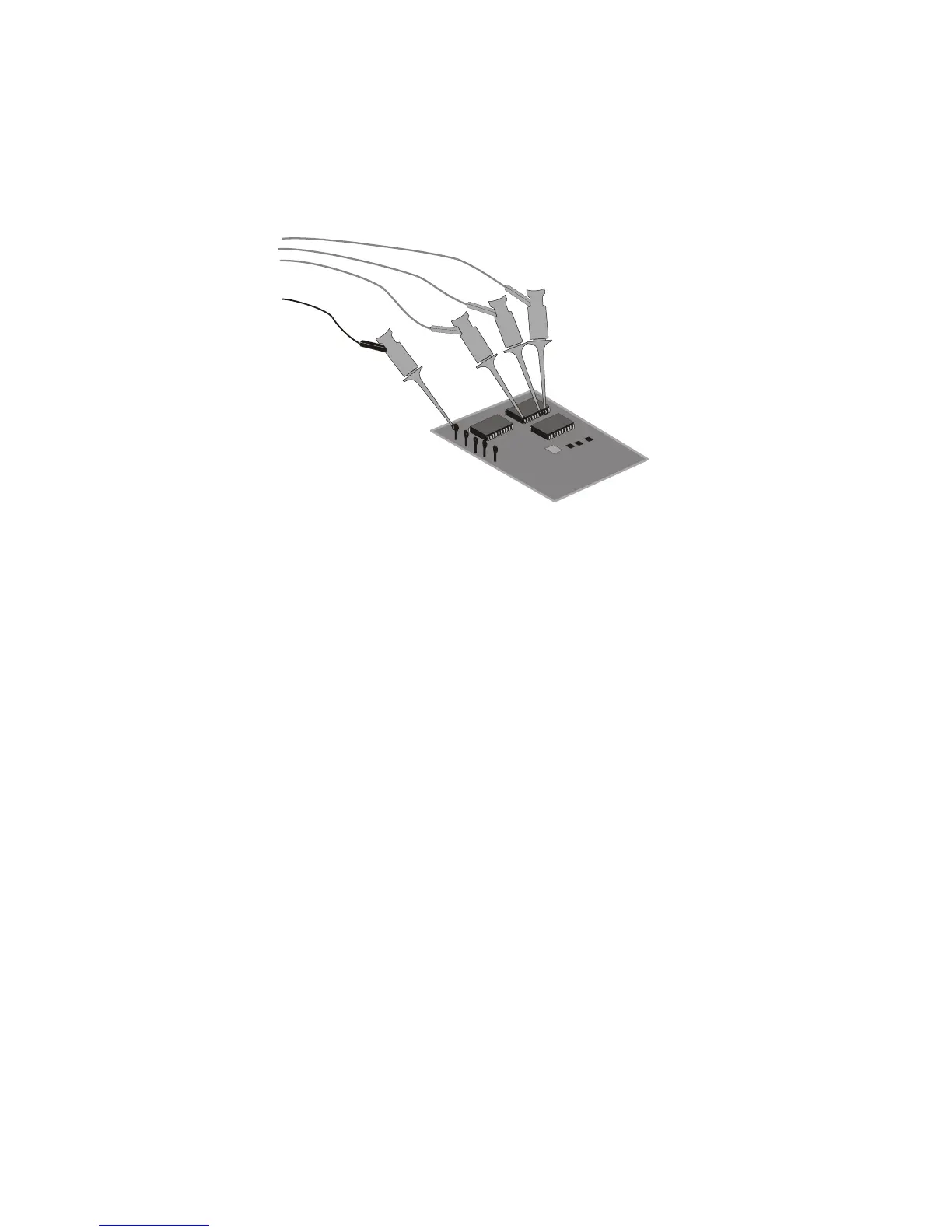

8 Repeat steps 3 through 6 until you have connected all points of interest.
Acquiring waveforms using the digital channels
When you press [Run/Stop] or [Single] to run the oscilloscope, the
oscilloscope examines the input voltage at each input probe. When the
trigger conditions are met the oscilloscope triggers and displays the
acquisition.
For digital channels, each time the oscilloscope takes a sample it compares
the input voltage to the logic threshold. If the voltage is above the
threshold, the oscilloscope stores a 1 in sample memory; otherwise, it
stores a 0.
