Tilt the Oscilloscope for Easy Viewing
The oscilloscope can be tilted up for easier viewing.

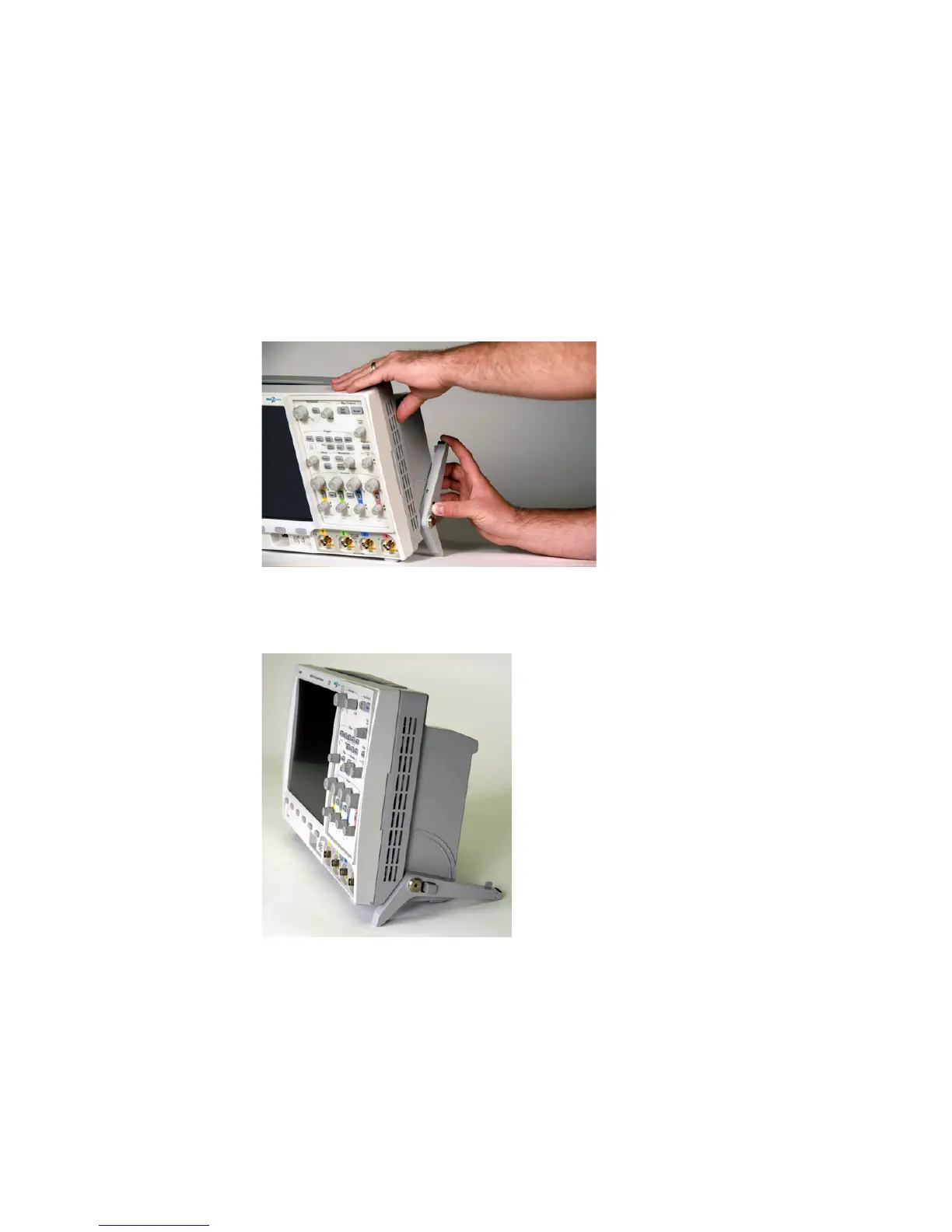

1 Tilt the oscilloscope forward. Rotate the foot down and toward the rear
of the oscilloscope. The foot will lock into place.
2 Repeat for the other foot.
3 Rock the oscilloscope back so that it rests securely on its feet.
To retract the feet:
1 Tilt the oscilloscope forward. Press the foot release button and rotate
the foot up and toward the front of the oscilloscope.
2 Repeat for the other foot.
