FlexRay Triggering
To set up the oscilloscope to capture a FlexRay signal, see “Setup for
FlexRay Signals” on page 314.
After you have set up the oscilloscope to capture a FlexRay signal, you
can then set up triggers on frames, errors, or events.
Triggering on FlexRay Frames
1 Press [Trigger]; then, select the FlexRay trigger type.

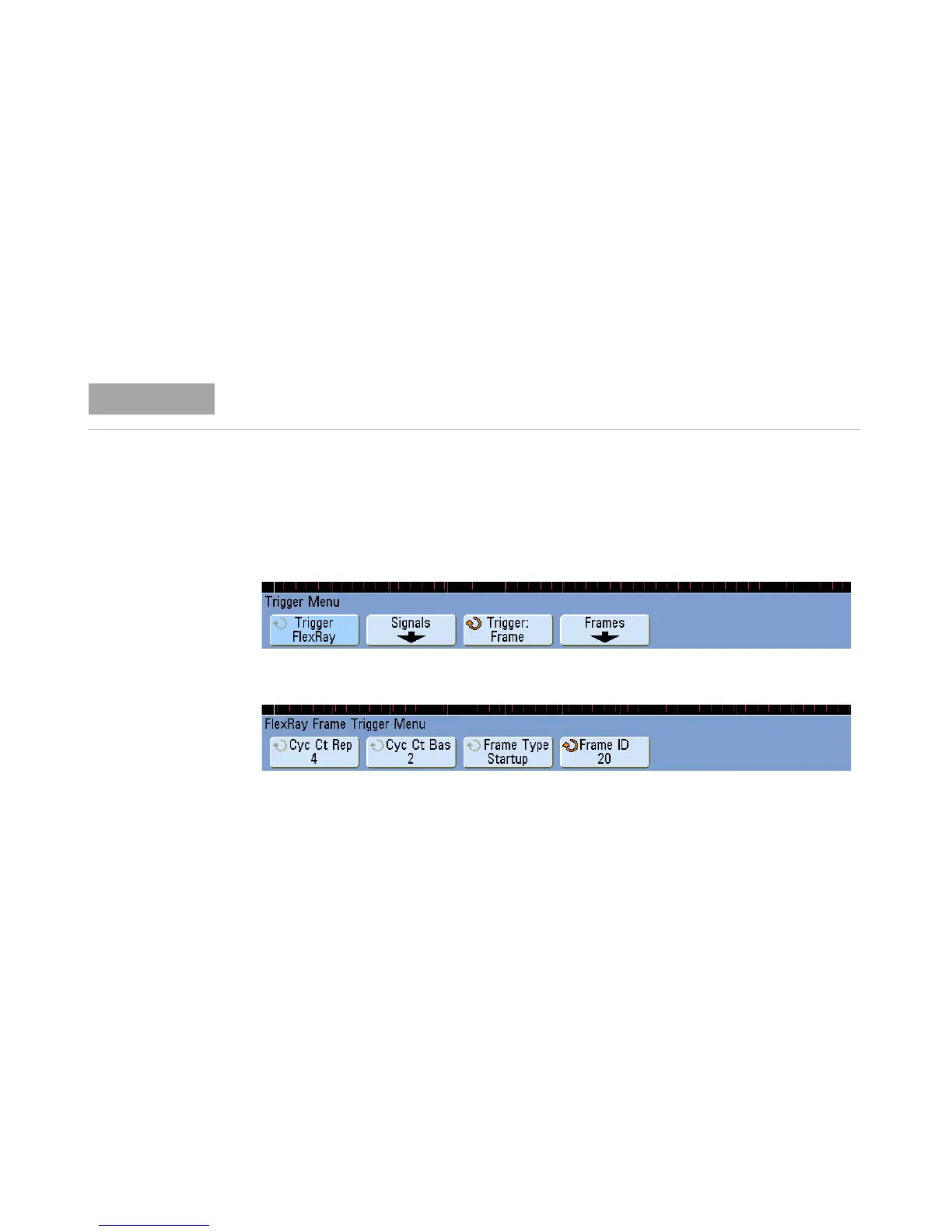

2 In the Trigger Menu press Trigger; then, select Frame.
3 Press the Frames softkey to access the FlexRay Frame Trigger Menu.
4 Press the Frame ID softkey, and use the Entry knob to select the frame
ID value from All or 1 to 2047.
5 Press the Frame Type softkey to select the frame type:
• All Frames
• Startup Frames
• NULL Frames
• Sync Frames
• Normal Frames
• NOT Startup Frames
• NOT NULL Frames
NOTE
To display FlexRay serial decode, see “FlexRay Serial Decode” on page 318.
