5 Measurements and Math Functions
180 InfiniiVision 7000B Series Oscilloscopes User’s Guide
The X1 X2 linked and Y1 Y2 linked selections let you adjust both cursors at
the same time, while the delta value remains the same. This can be
useful, for example, for checking pulse width variations in a pulse train.
The currently selected cursor(s) display brighter than the other cursors.
6 Adjust the selected cursor(s) by turning the Cursors knob.
Cursor Examples

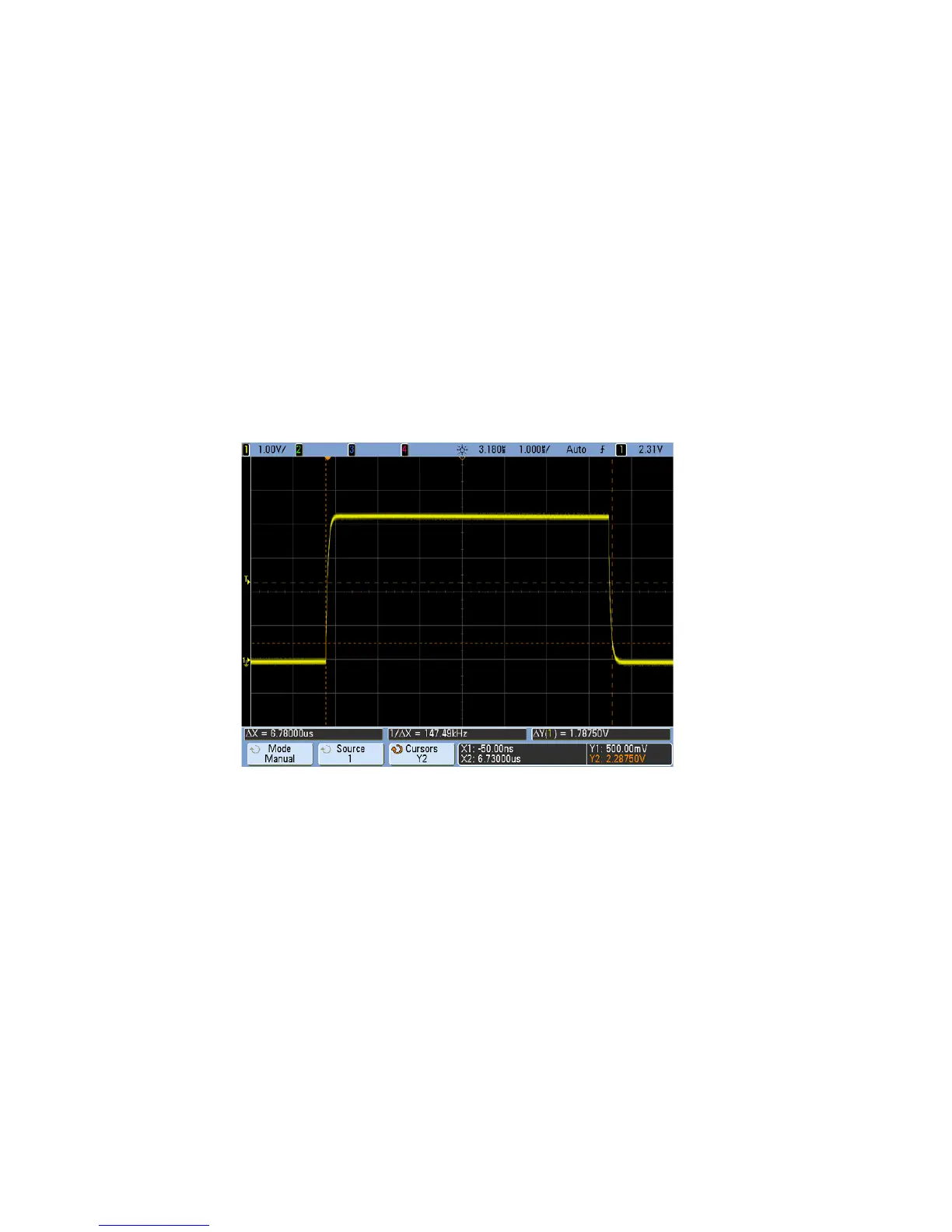

Figure 22 Cursors used to measure pulse widths other than middle threshold points
