UART/RS232 Triggering and Serial Decode 15
InfiniiVision 7000B Series Oscilloscopes User’s Guide 341

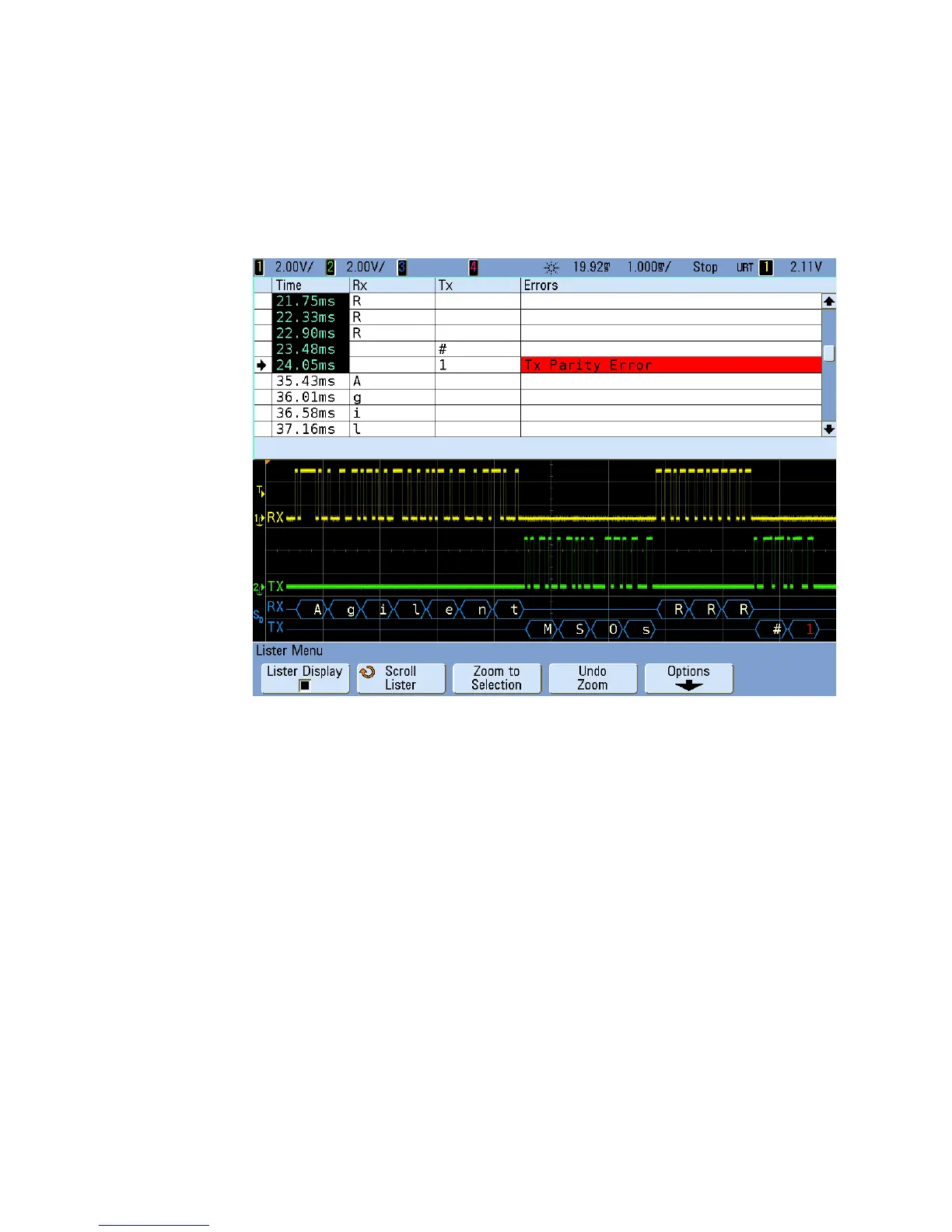

Interpreting UART/RS232 Lister Data
In addition to the standard Time column, the UART/RS232 Lister contains
these columns:
• Rx — receive data.
• Tx — transmit data.
• Errors — highlighted in red, Parity Error or Unknown Error.
