5 Measurements and Math Functions
174 InfiniiVision 7000B Series Oscilloscopes User’s Guide

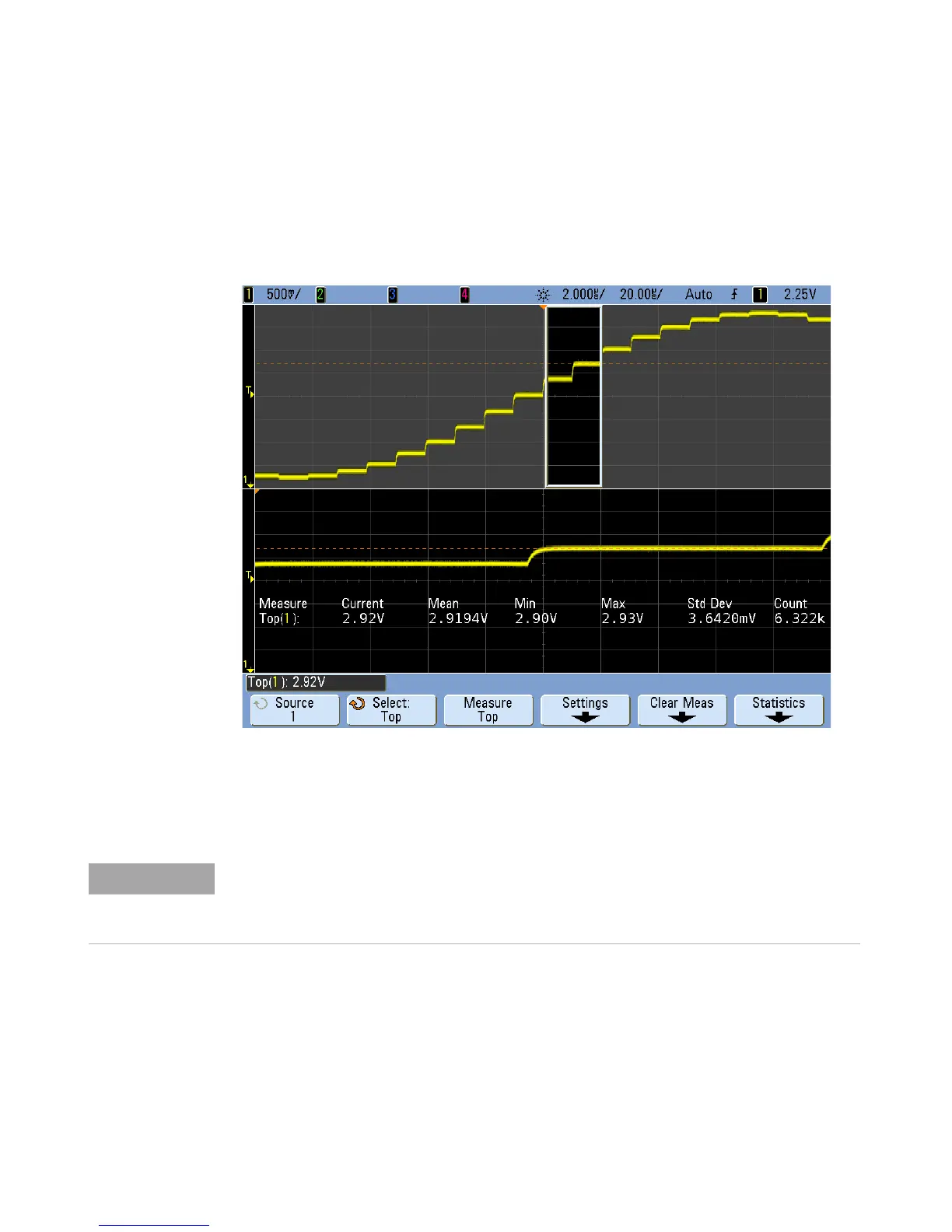

To isolate a pulse for Top measurement The following figure shows how to
use Zoom mode to isolate a pulse for a Top measurement.
Figure 20 Isolating area for Top measurement
Overshoot and Preshoot Measurements
NOTE
Digital channel time measurements
Automatic measurements Preshoot and Overshoot are not valid measurements for the
math FFT function or for digital channels on the mixed-signal oscilloscope.
