14 MIL-STD 1553 Triggering and Serial Decode
328 InfiniiVision 7000B Series Oscilloscopes User’s Guide

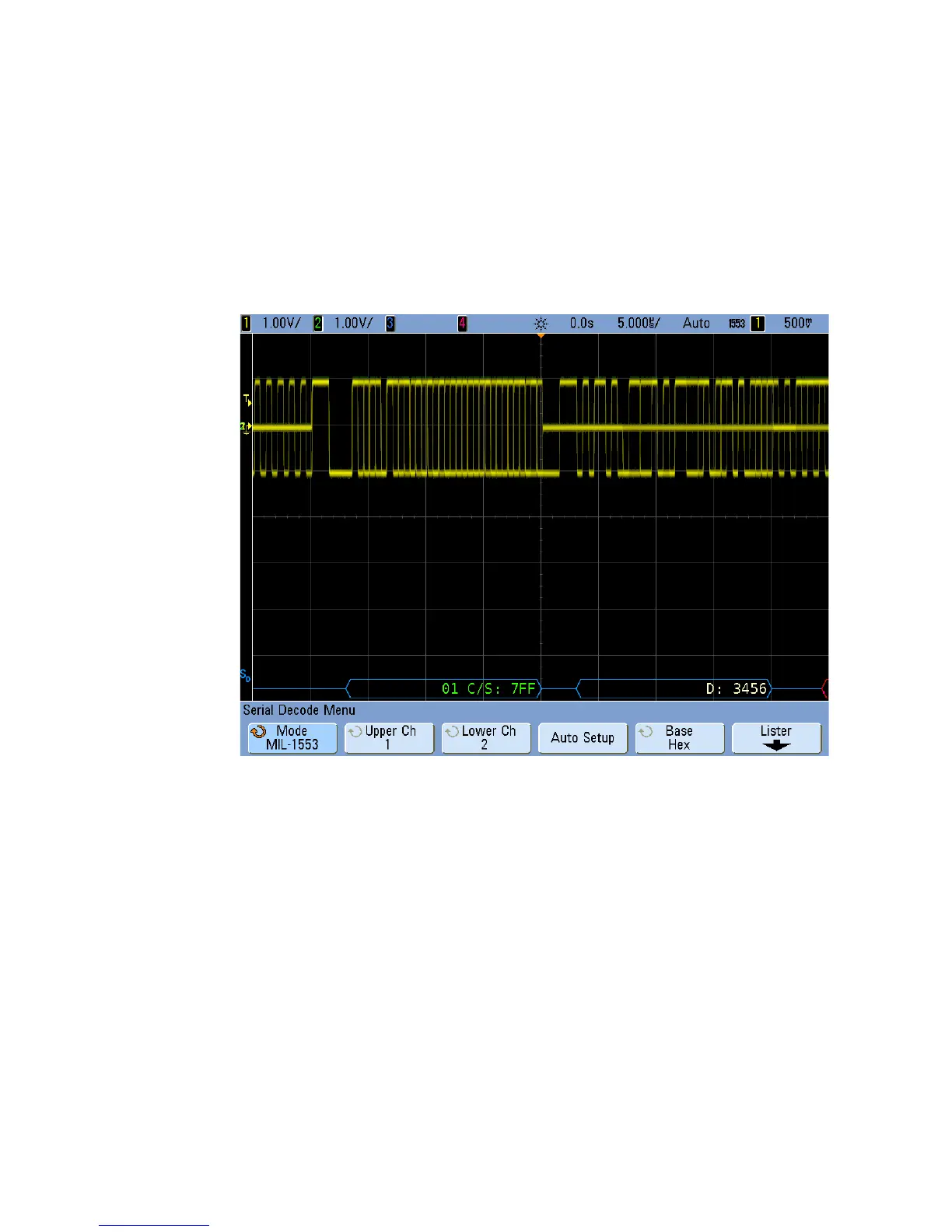

Interpreting MIL-STD 1553 Decode
To display serial decode information, you must press Run or Single after
switching on serial decode.
The MIL- STD 1553 decode display is color coded as follows:
• Command and Status decoded data is colored green, with the Remote
Terminal Address (5 bits of data) being displayed first, then the text
"C/S:", followed by the value of the remaining 11 bits of a
Command/Status word.
• Data word decoded data is colored white, preceded by the text "D:".
• Command/Status or Data words with a Parity error have the decode
text displayed in red instead of green or white.
• SYNC errors are displayed with the word "SYNC" within red angle
brackets.
