13 FlexRay Triggering and Serial Decode
318 InfiniiVision 7000B Series Oscilloscopes User’s Guide
FlexRay Serial Decode
To set up the oscilloscope to capture FlexRay signals, see “Setup for
FlexRay Signals” on page 314.

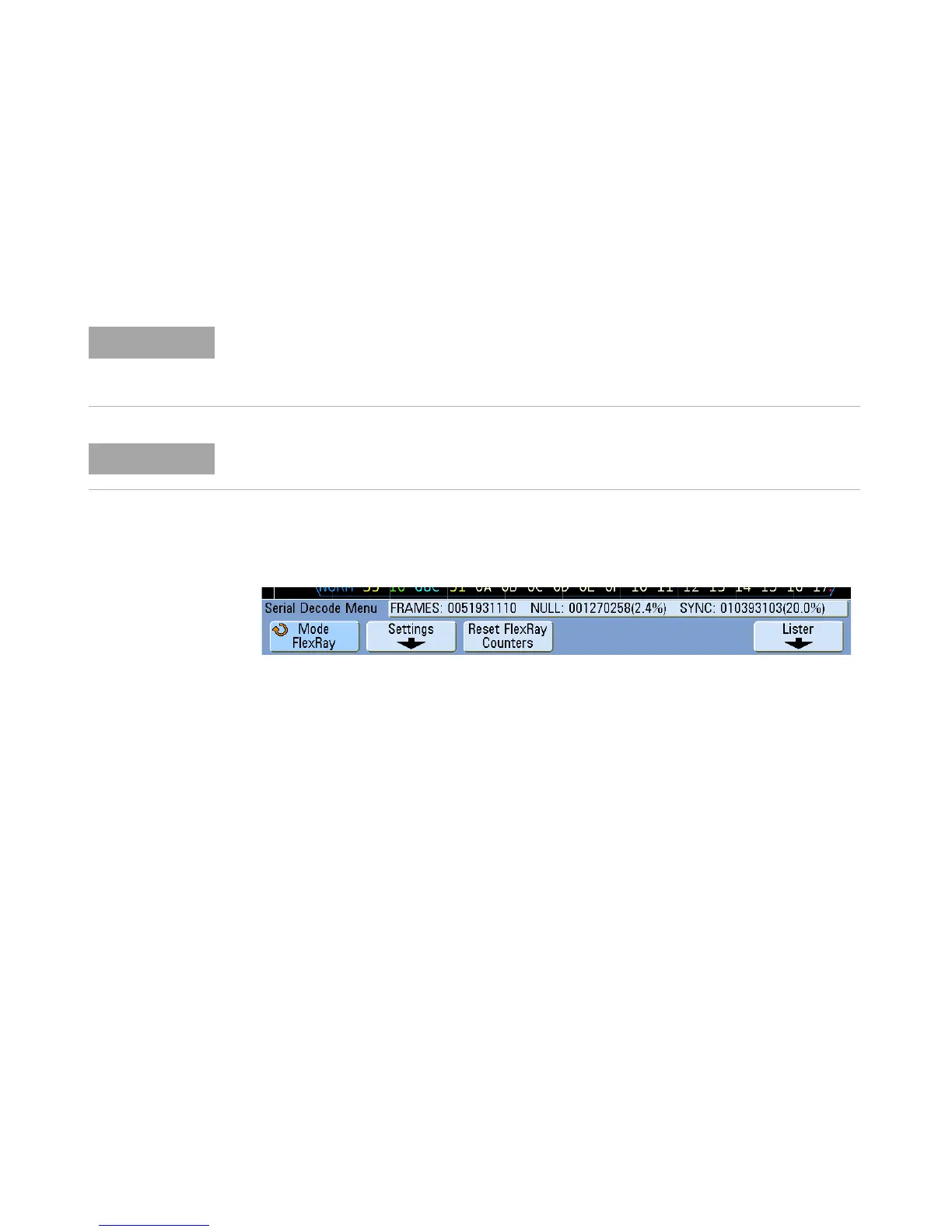

To set up FlexRay serial decode:
1 Press [Serial]; then, select the FlexRay serial decode mode.
2 If the decode line does not appear on the display, press the [Serial] key
to turn it on.
3 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and
decode data.
You can use the Zoom horizontal sweep mode for easier navigation of the
decoded data.
While decoding FlexRay data, you can use FlexRay trigger or another trigger type, such as
duration, I
2
C, Nth edge burst, sequence, SPI, or USB.
When the oscilloscope is in FlexRay trigger mode, only FlexRay decode is available.
For FlexRay triggering setup see “FlexRay Triggering” on page 315.
