Become Familiar with the Osciilloscope Display
The oscilloscope display contains acquired waveforms, setup information,
measurement results, and the softkey definitions.

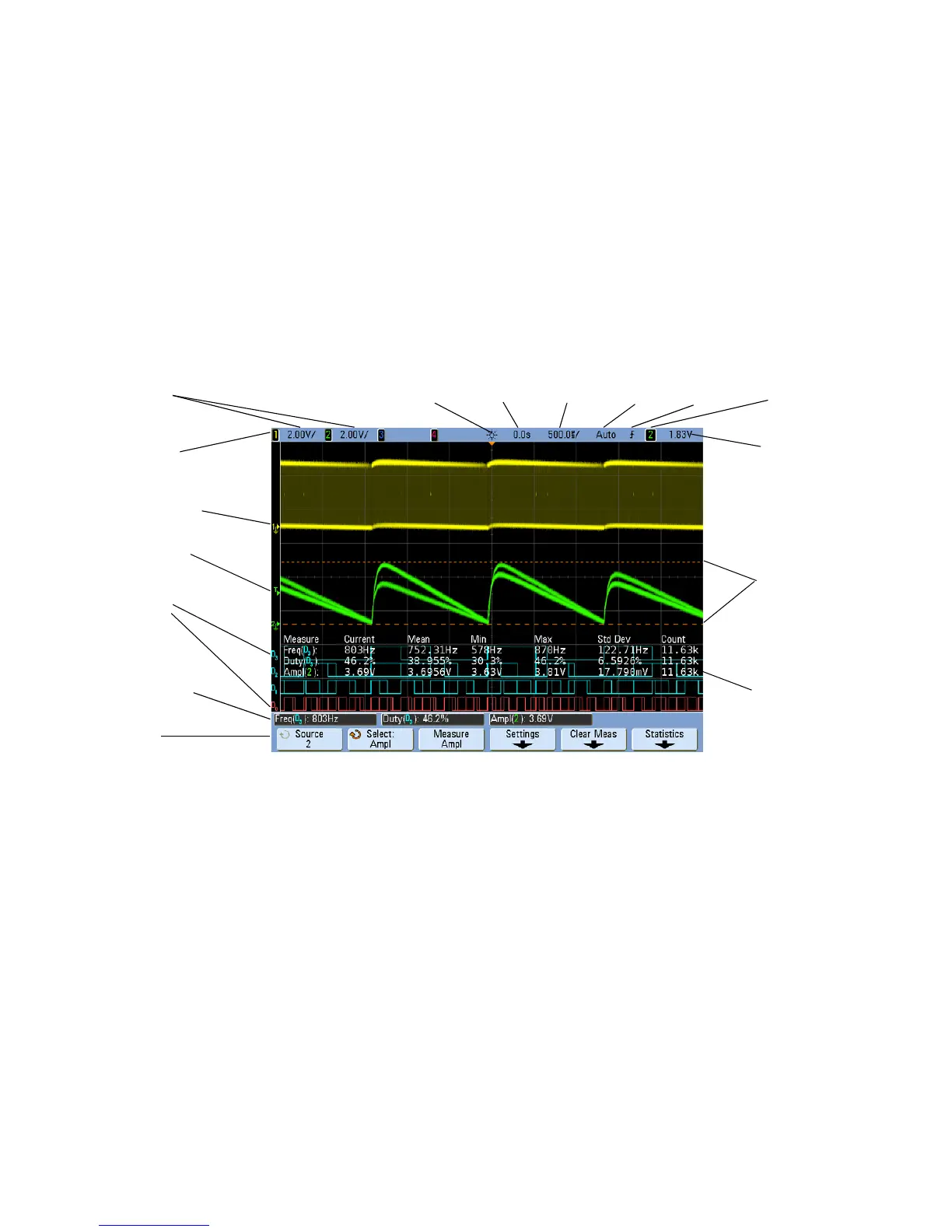

Figure 1 Interpreting the oscilloscope display
Status line The top line of the display contains vertical, horizontal, and
trigger setup information.
Display area The display area contains the waveform acquisitions, channel
identifiers, and analog trigger and ground level indicators. Each analog
channel’s information appears in a different color.
Measurement line This line normally contains automatic measurement and
cursor results, but can also display advanced trigger setup data and menu
information.
Softkeys The softkeys let you set up additional parameters for the
selected mode or menu.
Analog
channel
sensitivity
Delay
time
Trigger level
or digital
threshold
Trigger
source
Trigger
type
Run/Stop
status
Sweep
speed
Analog
channels and
ground levels
Digital
channels
Measurement
line
Softkeys
Trigger point,
time reference
Cursor
markers
defining
measurement
Status line
Trigger Level
Measurement
statistics
