Digital Channels 17
InfiniiVision 7000B Series Oscilloscopes User’s Guide 365
ground lug beside the Probe Comp output. Set the instrument to the
factory default configuration by pressing the [Default Setup] key. Then press
the [AutoScale] key. You should see a display similar to the following.

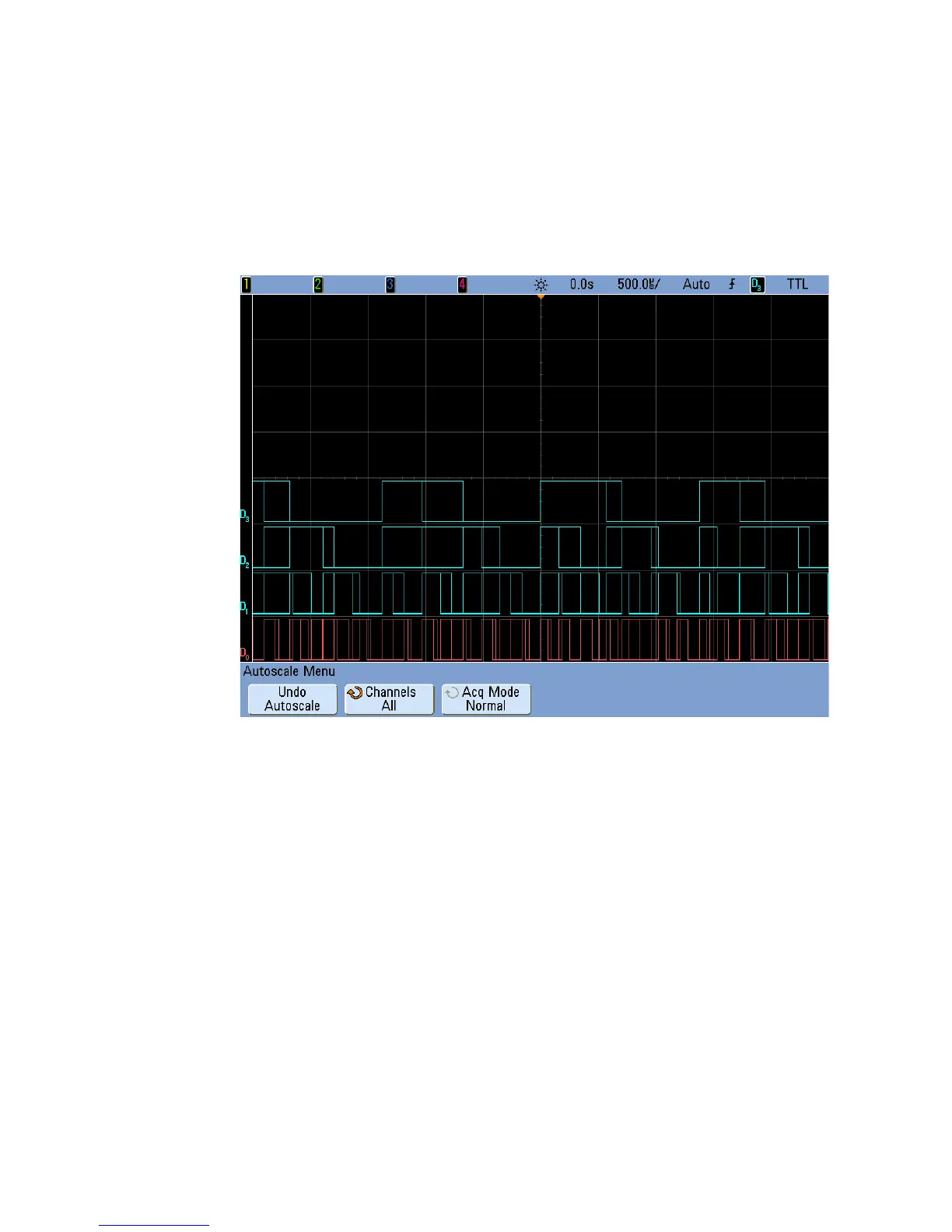

Figure 35 AutoScale of digital channels 0 to 3 (MSO models only)
