4 Triggering
146 InfiniiVision 7000B Series Oscilloscopes User’s Guide
To trigger on all fields of the video signal
To quickly and easily view transitions between fields, or to find the
amplitude differences between the fields, use the All Fields trigger mode.
1 Press the [Trigger] key; then, select TV.
2 Press the Settings softkey, then press the Standard softkey to select the
appropriate TV standard.
3 Press the Mode softkey and select All Fields.

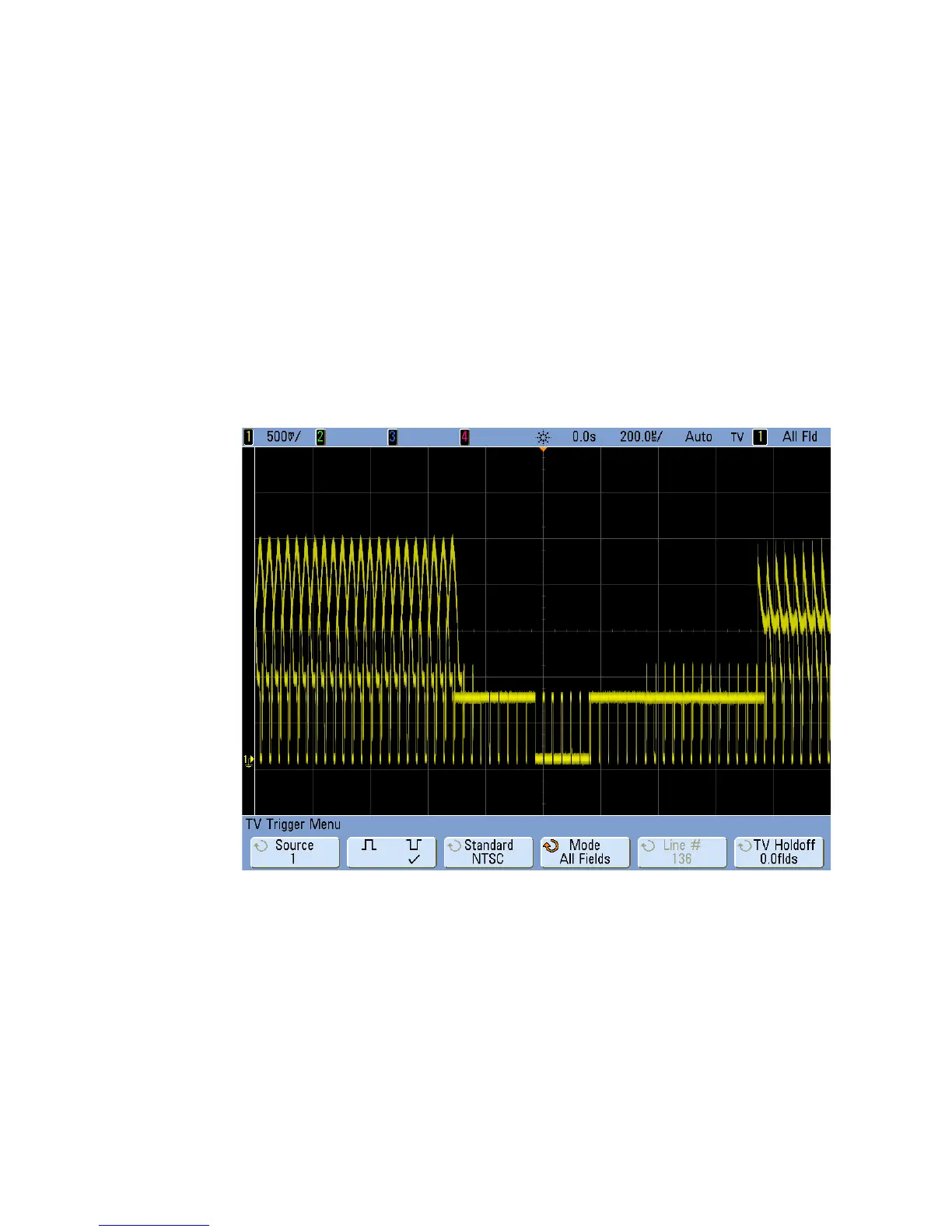

Figure 16 Triggering on All Fields
