3 Displaying Waveforms
84 InfiniiVision 7000B Series Oscilloscopes User’s Guide
Changing the Display Settings
To adjust waveform intensity
The Intensity knob lets you adjust the displayed waveforms to account for
various signal characteristics, such as fast sweep speeds and low trigger
rates. Increasing the intensity lets you see the maximum amount of noise
and infrequently occurring events. Reducing the intensity can expose more
detail in complex signals as shown in the following figures. The intensity
knob does not affect the digital channels.

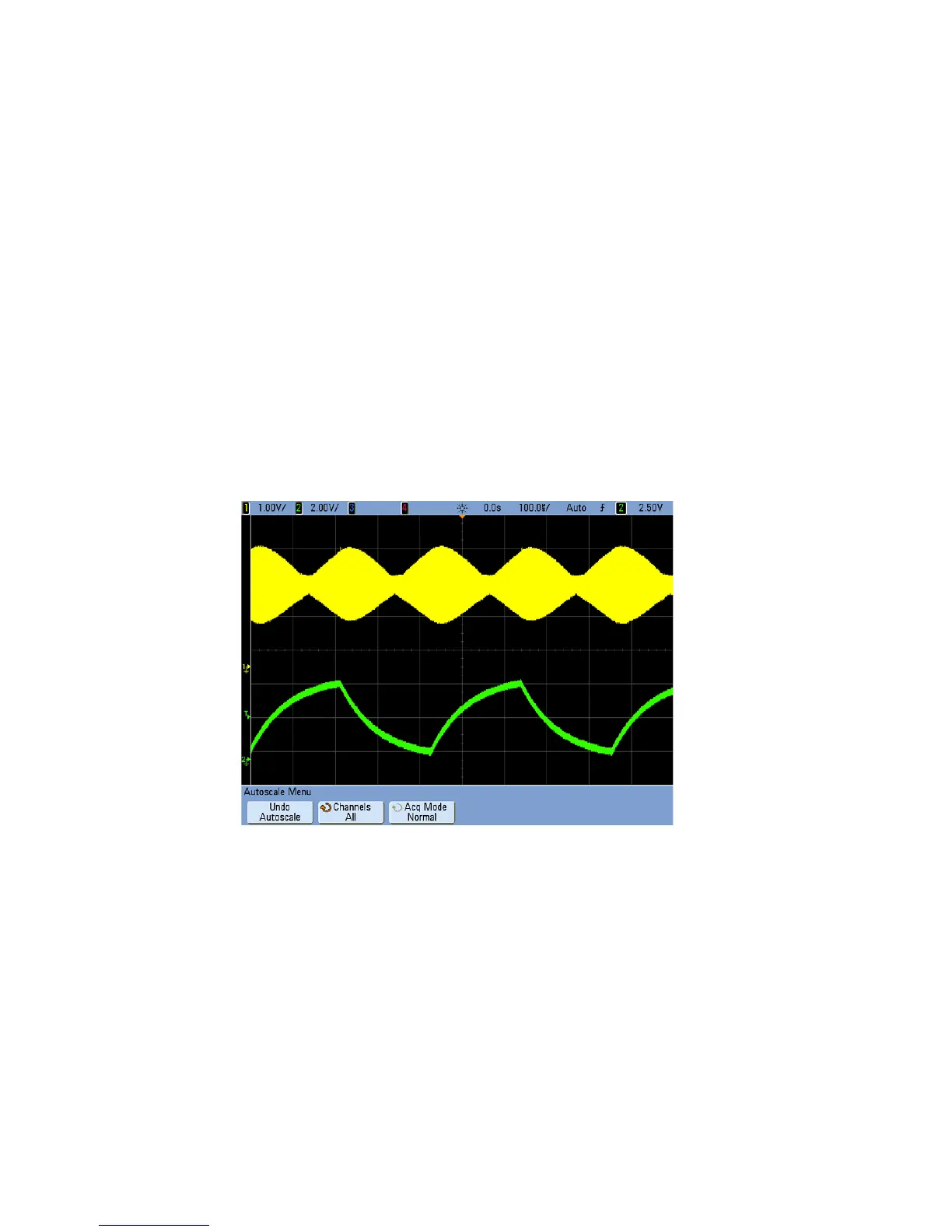

Figure 8 Amplitude Modulation Shown at 100% Intensity
