10 CAN/LIN Triggering and Serial Decode
266 InfiniiVision 7000B Series Oscilloscopes User’s Guide
CAN Serial Decode
To set up the oscilloscope to capture CAN signals, see “Setup for CAN
Signals” on page 262.
To set up CAN serial decode:

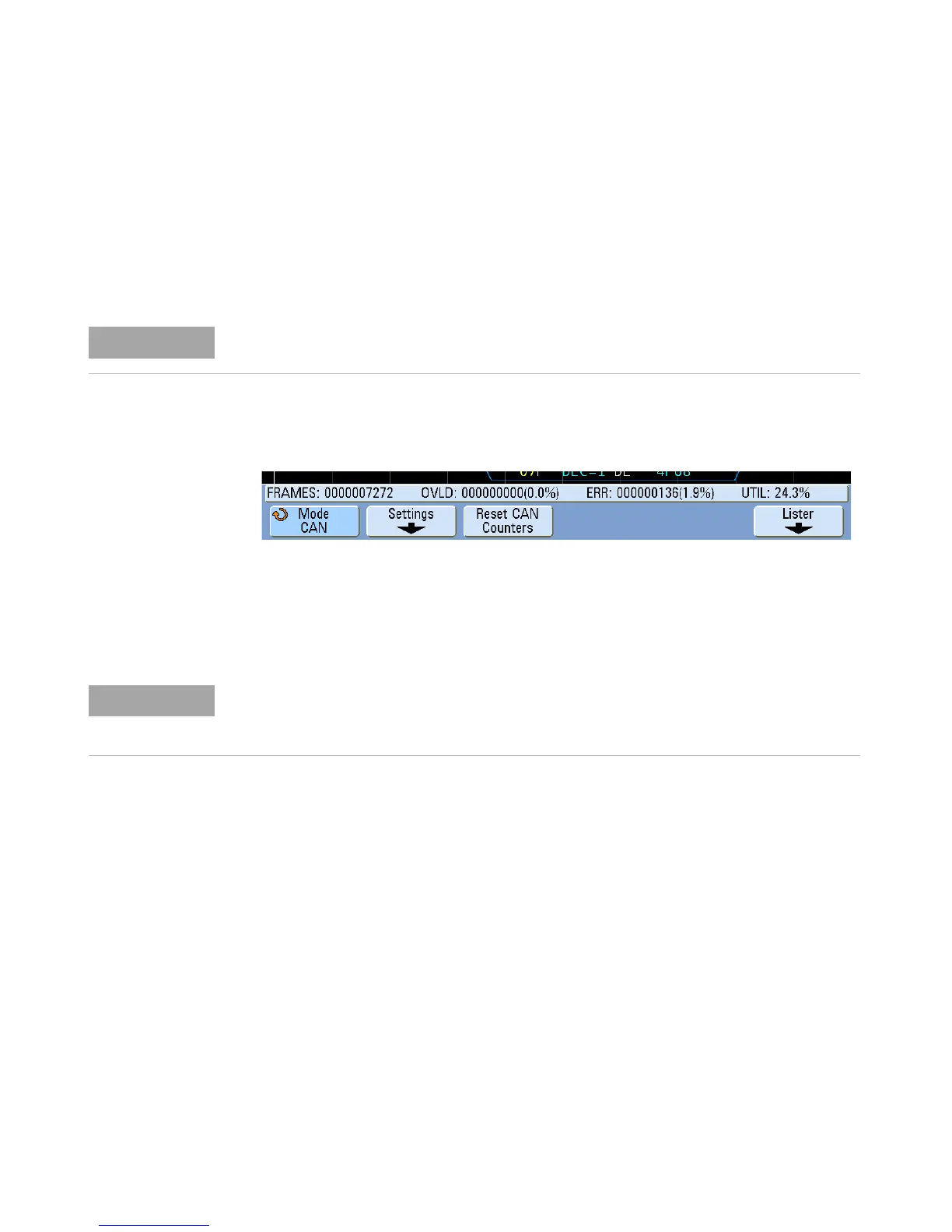

1 Press [Serial]; then, select the CAN serial decode mode.
2 If the decode line does not appear on the display, press the [Serial] key
to turn it on.
3 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and
decode data.
You can use the Zoom horizontal sweep mode for easier navigation of the
decoded data.
For CAN triggering set up see “CAN Triggering” on page 264.
If the setup does not produce a stable trigger, the CAN signal may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode
softkey to set the trigger mode from Auto to Normal.
