Measurements and Math Functions 5
InfiniiVision 7000B Series Oscilloscopes User’s Guide 179
• Binary — Logic levels of displayed waveforms at the current X1 and
X2 cursor positions are displayed above the softkeys in binary. The
display is color coded to match the color of the related channel’s
waveform.
• Hex — Logic levels of displayed waveforms at the current X1 and X2
cursor positions are displayed above the softkeys in hexadecimal.
Manual and Track Waveform modes can be used on waveforms that are
displayed on the analog input channels (including math functions).
Binary and Hex modes apply to digital signals (of MSO oscilloscope
models).
In Hex and Binary modes, a level can be displayed as 1 (higher than
trigger level), 0 (lower than trigger level), indeterminate state ( ), or X
(don't care).
In Binary mode, X is displayed if the channel is turned off.
In Hex mode, the channel is interpreted as 0 if turned off.
4 Press Source (or X1 Source, X2 Source in the Track Waveform mode); then,
select the input source for cursor values.
5 Select the cursor(s) to be adjusted:
• Press the Cursors softkey; then, turn the Entry knob.
Or:
• Push the Cursors knob; then, turn the Cursors knob. To finalize your
selection, either push the Cursors knob again or wait a couple
seconds for the popup menu to disappear.

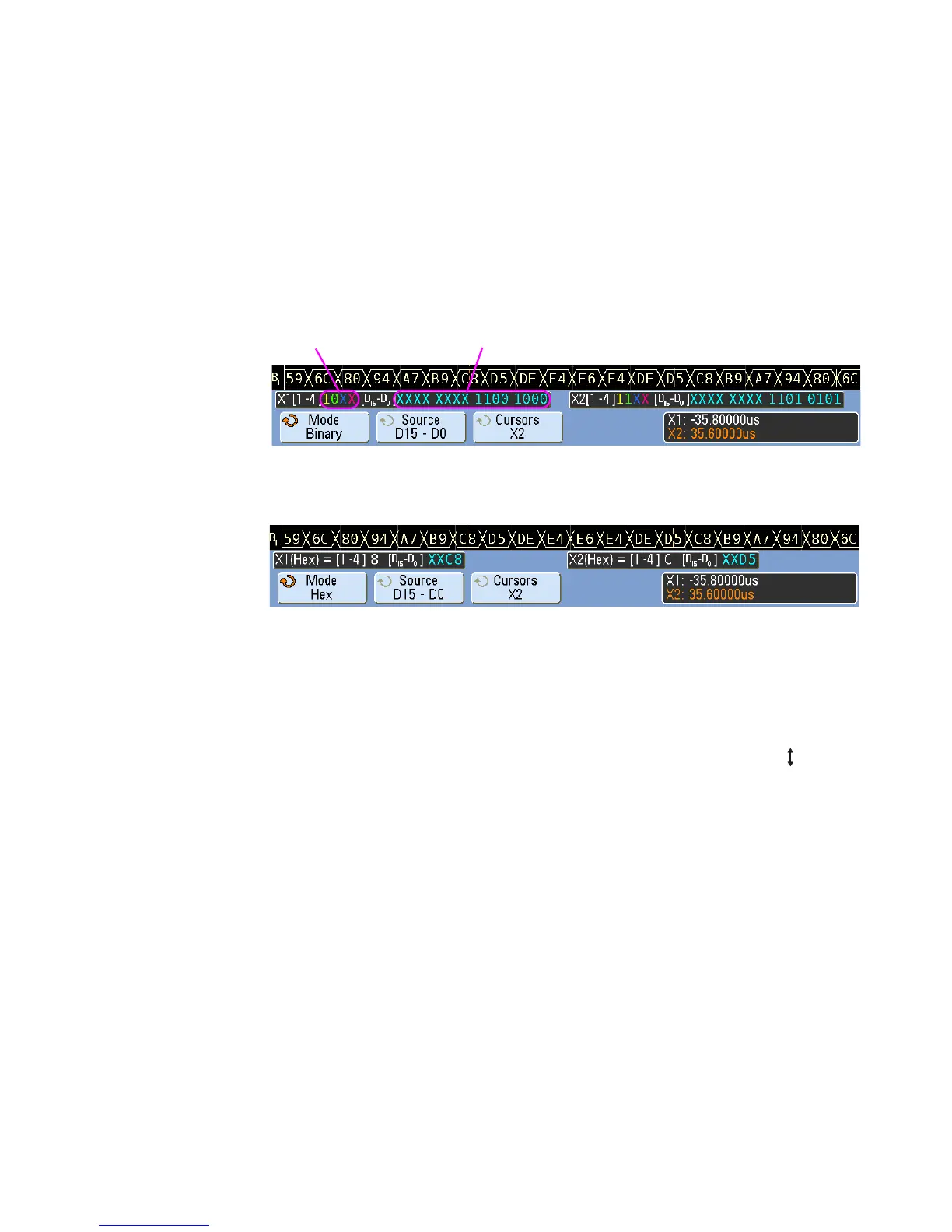

Cursor X1 values
for analog channels
1 through 4
Cursor X1 values for
digital channels
D15 Through D0
