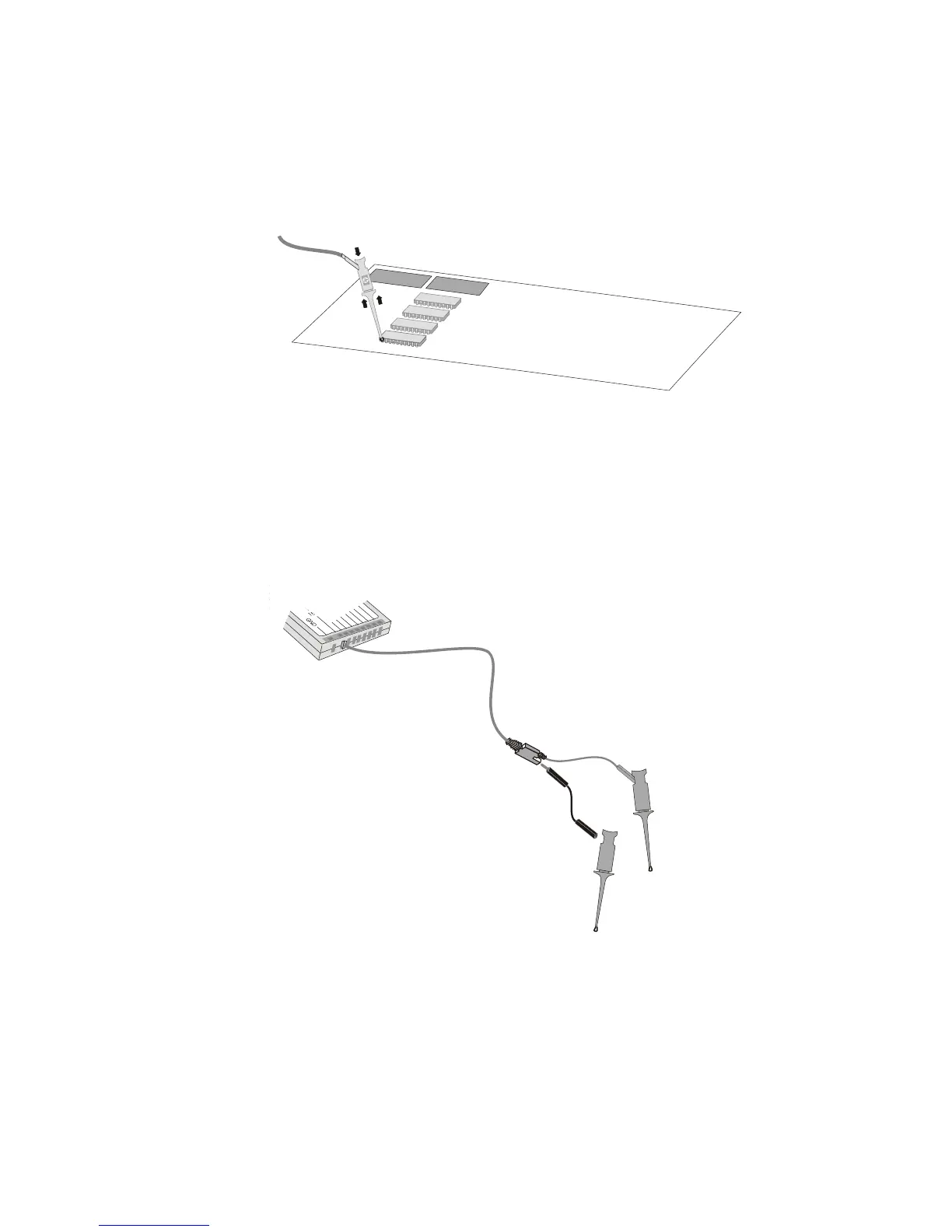

6 Connect the grabber to a node in the circuit you want to test.
7 For high- speed signals, connect a ground lead to the probe lead,
connect a grabber to the ground lead, and attach the grabber to ground
in the device under test.
Signal Lead
Ground Lead
Grabber
