4 Connect the ground lead on each set of channels (each pod), using a
probe grabber. The ground lead improves signal fidelity to the
oscilloscope, ensuring accurate measurements.

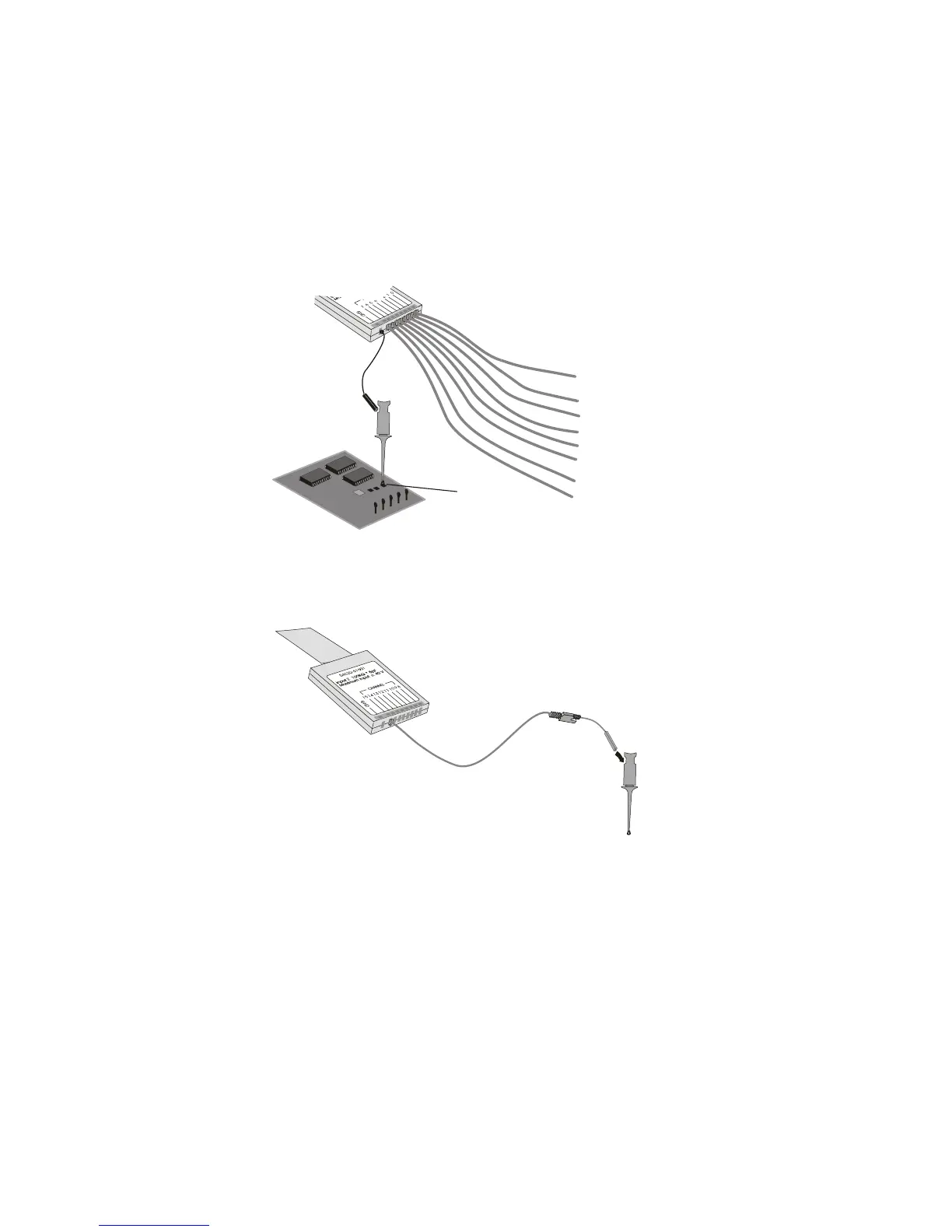

5 Connect a grabber to one of the probe leads. (Other probe leads are
omitted from the figure for clarity.)
Circuit
Ground
Channel
Pod Ground
