If Your Keyboard Has a MIDI Thru Jack

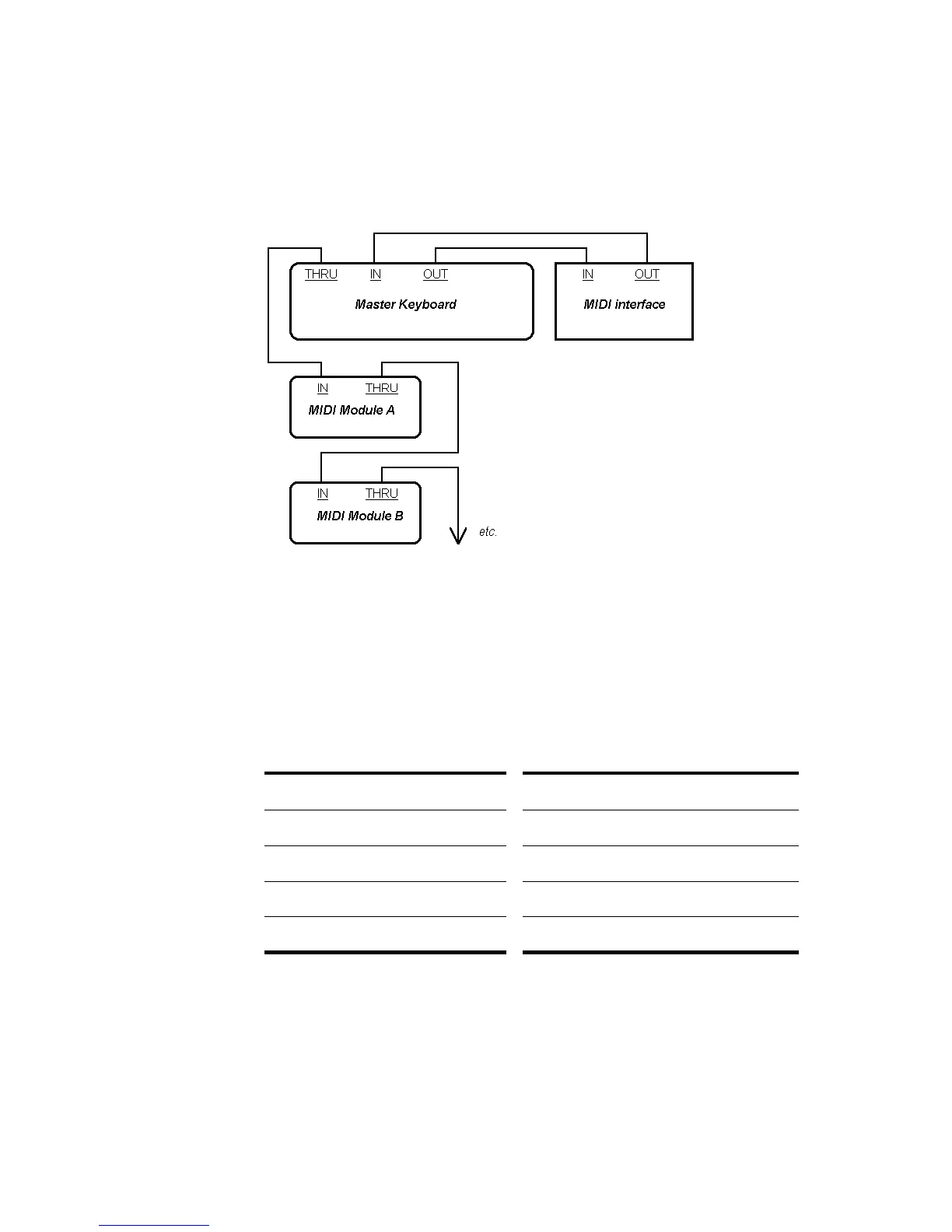

If your keyboard has three MIDI jacks—In, Out, and Thru—then use the following
diagram.
If you are using a 15-pin joystick adapter cable that splits into two MIDI cables:
• Connect the 15-pin jack to your computer’s joystick port.
• Connect the In cable to your instrument’s MIDI Out jack.
• Connect the Out cable to your instrument’s MIDI In jack.
Here’s a checklist:
Continue the sequence, repeating the last connection for each of your sound
modules.
Connect this... To this...
Master keyboard Out MIDI interface In
MIDI interface Out Master keyboard In
Master keyboard Thru Another MIDI module’s
In
That MIDI module’s Thru Yet another MIDI module’s In
