Event Code 713
270
M4.8-1055-060
03 Rev. 10/09
Event Code 713
Excessive Current SPL Solenoid Coil Circuit.
Event logged if excessive current flows through driver
CA230-1.
Step 1: Remove wire from CA230-1. Key on truck and
attempt to lower, monitor event code.
• If: Event 713 is not the last event.
– Then short is in the wiring or solenoid. Coil re-
sistance should be approximately 29 ohms.
Reinstall wire and proceed to Step 2.
• If: Event 713 is still the last event.
– Then replace ACCESS 7.
Step 2: Remove positive wire from solenoid. Key-on
truck and attempt to lower, monitor event code.
• If: Event 713 is still the last event.
– Then short exists in wiring, check for shorts be-
tween negative and positive wire.
• If: Event 713 is not the last event code.
– Then short exists in solenoid, replace solenoid.
Coil resistance should be approximately 29
ohms.
Event Code 714
Excessive Current SPA Solenoid Coil Circuit.
Event logged if excessive current flows through driver
CA230-2.
Step 1: Remove wire from CA230-2. Key on truck and
attempt to tilt, monitor event code.
• If: Event 714 is not the last event.
– Then short is in the solenoid or wiring. Coil re-
sistance should be approximately 29 ohms.
Reinstall wire and proceed to Step 2.
• If: Event 714 is still the last event.
– Then replace ACCESS 7.
Step 2: Remove positive wire from solenoid. Key on
truck and attempt to tilt, monitor event code.
• If: Event 714 is still the last event.
– Then short exists in wiring, check for shorts be-
tween negative and positive wire.
• If: Event 714 is not the last event code.
– Then short exists in solenoid, replace solenoid.
Coil resistance should be approximately 29
ohms.

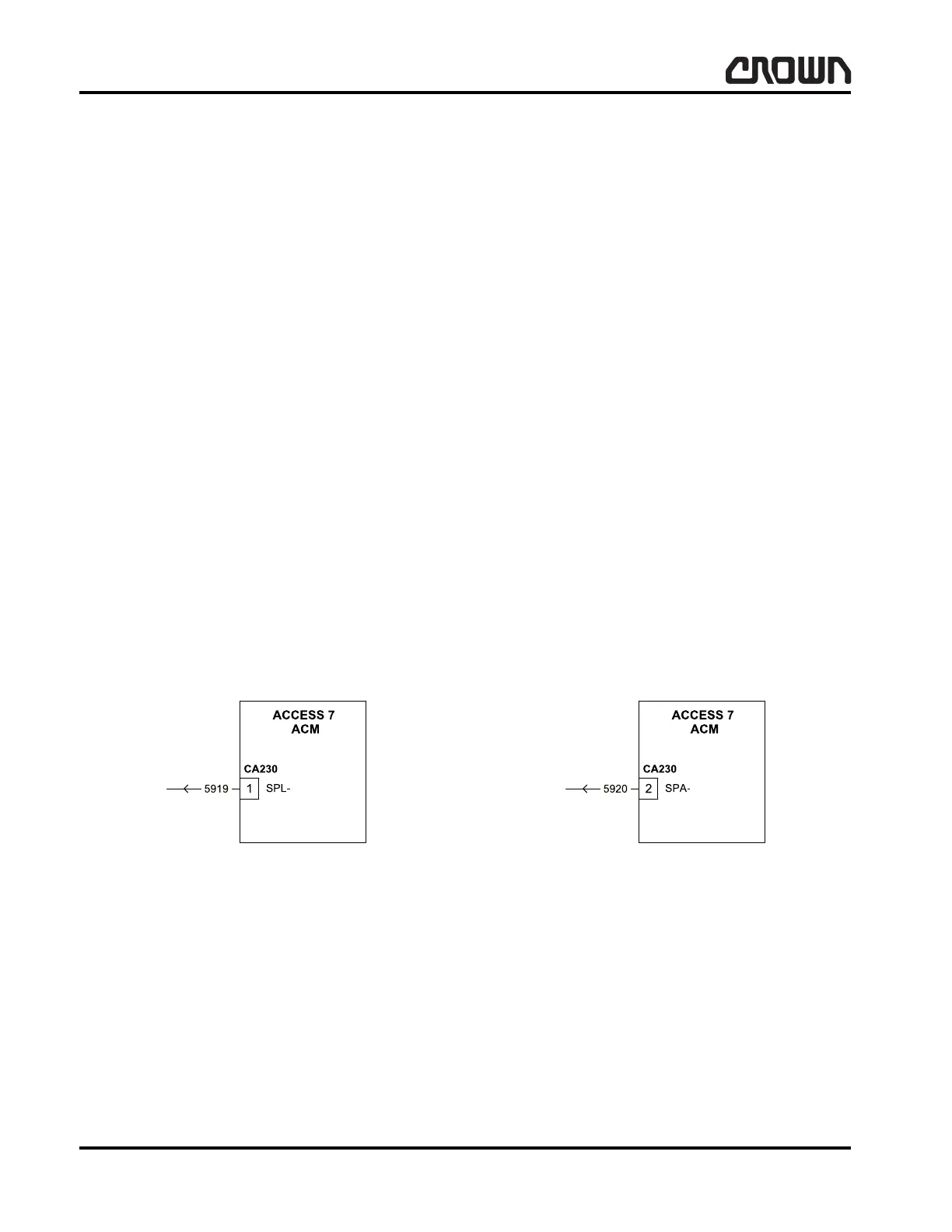

Figure 16065 Figure 16066
