Lift/Lower Request Potentiometer
Location: multi-task handle.
Purpose: provide lift request input to controller.
Data: 1.7 K ohm.
Adjustment: refer to maintenance section.
POT3
Accessory Request Potentiometer
Location: multi-task handle.
Purpose: provide accessory functions request input to
controller.
Data: 1.7 K ohm.
Adjustment: refer to maintenance section.
POT4
Steer Potentiometer
Location: right of steer tiller.
Purpose: provides input to Access 3 for steering feed-
back.
Data: 5 K ohm.
Adjustment: refer to maintenance section.

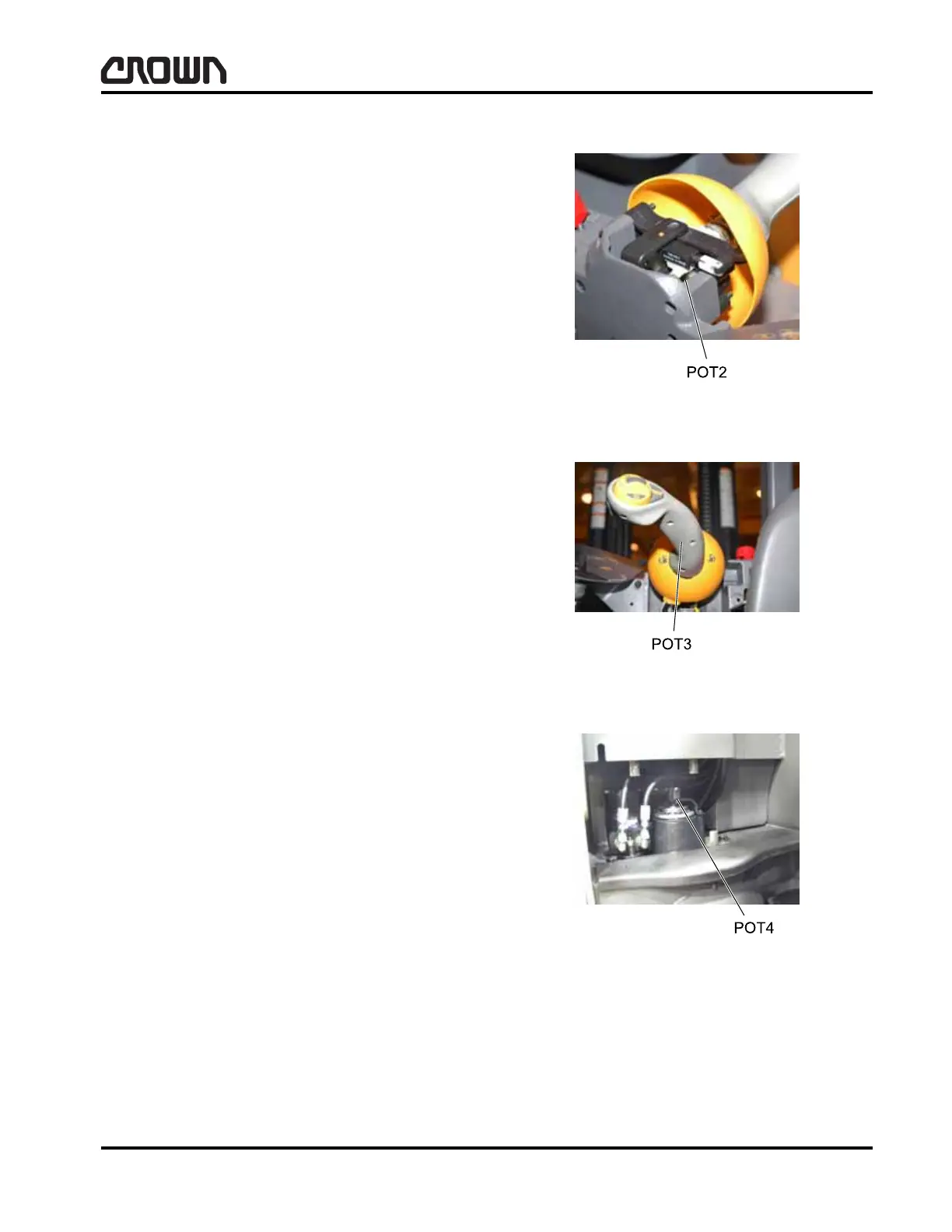

Figure 15921
Figure 15922
Figure 15923
