LUBRICATION & ADJUSTMENT
Componentry
L
Line Contactor
Location: horizontal on contactor panel.
Purpose: switch power to Access 3 power circuitry.
Data: 36VDC.
Adjustment: none required.
LCV
Compensated Flow Regulator Lower
Location: mast manifold.
Purpose: limit maximum lowering speed of mast re-
gardless of hydraulic system pressure.
Data: flow setting pre-set by vendor.
Adjustment: none required.
LGT1, LGT2
Work Lights
Location: overhead guard or mast.
Purpose: provide lighted work area outside operator
compartment.
Data: 36VDC.
Adjustment: none required.

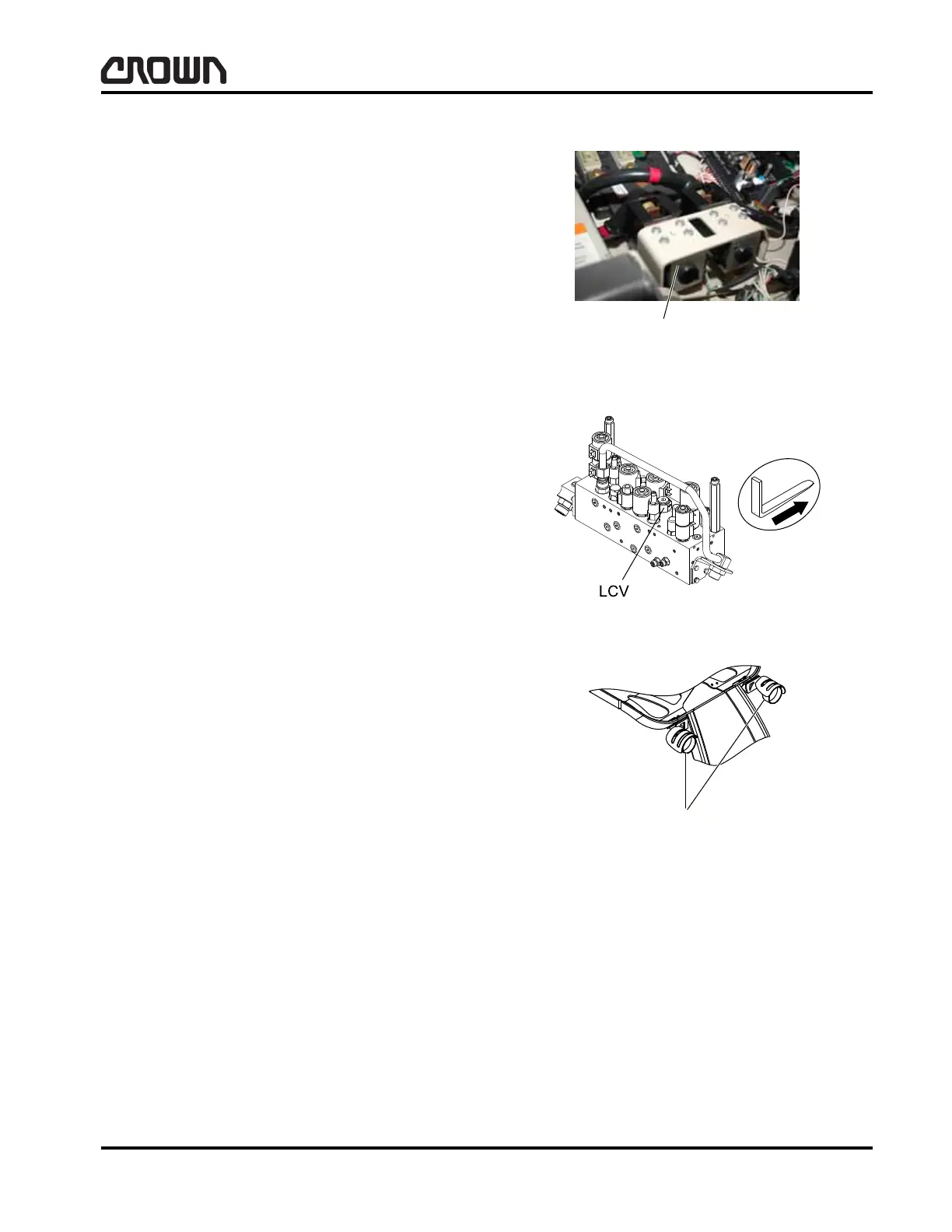

Figure 15909
Figure 15905
Figure 15910
Crown 2007 PF15674-15 Rev. 3/07
