Crown RC 5500 series - Drive Unit; Drive Unit Parts; AC Traction Motor

DRIVE UNIT PARTS
AC Traction Motor
502
03.1-1055-001
01 Rev. 12/08

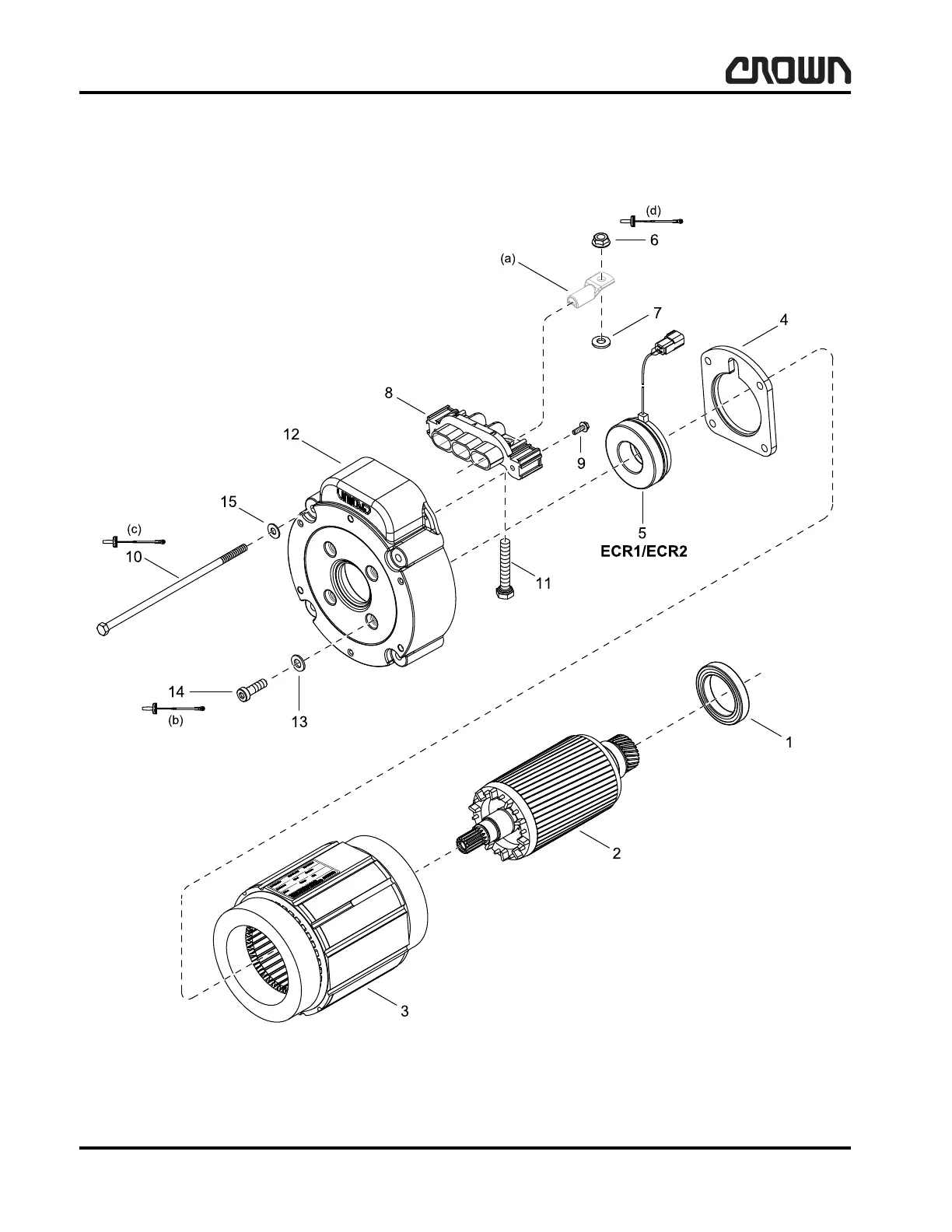

AC Traction Motor
Figure 15403-01
(a) Power Terminal
(b) Torque 9 - 13 Nm (6.6 - 9.6 ft lb)
(c) Torque 32 - 36 Nm (23.6 - 26.5 ft lb)
(d) Torque 23 - 24 Nm (16.9 - 17.7 ft lb)
Crown 2006 PF15615-1 Rev. 12/08
