53
M1.0-1055-058
LUBRICATION & ADJUSTMENT
Componentry

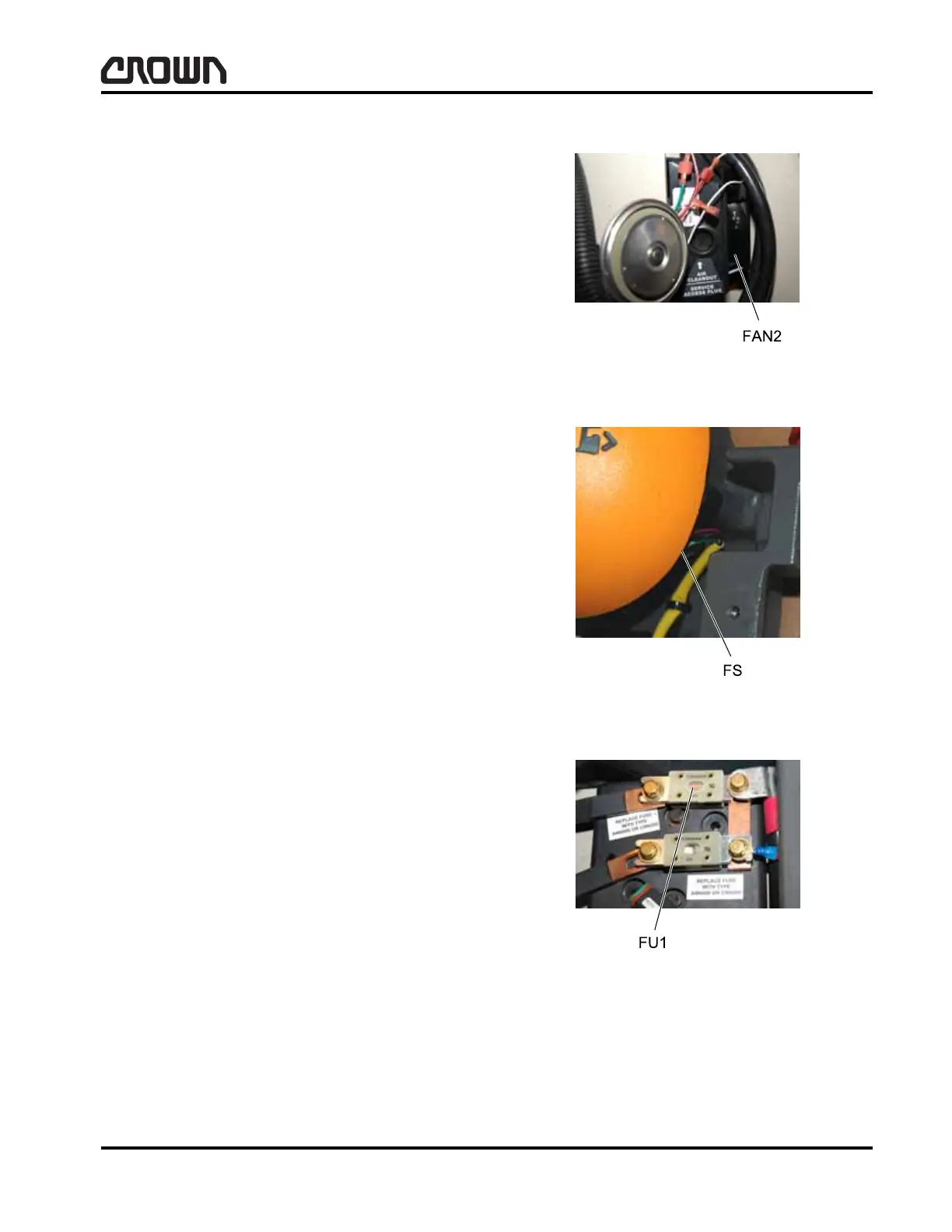

FAN2
Controller Fan
Location: near bottom side of left A pillar, beside Ac-
cess 3 (TCM).
Purpose: cooling of Access 2 and 3.
Data: 36VDC, 420 mA running current, 3500 rpm and
235 cfm.
Adjustment: none required.
FS
Forward Travel Switch
Location: multi-task handle.
Purpose: informs control system forward travel is be-
ing requested by the operator.
Data: Optic switch output 0 volts when forward direc-
tion is selected. Output 5 volts when in neutral or re-
verse travel selected.
Adjustment: none required.
FU1
Traction Fuse
Location: fuse panel.
Purpose: protect traction motor and associated power
circuitry from overcurrent.
Data: 500A.
Adjustment: none required.
Figure 15893
Figure 15894
Figure 15895
Crown 2007 PF15674-9
