Crown RC 5500 series - Mast - Quad

LIFTING MECHANISM PARTS
Mast - Quad
590
07.24-1055-100
03 Rev. 11/08

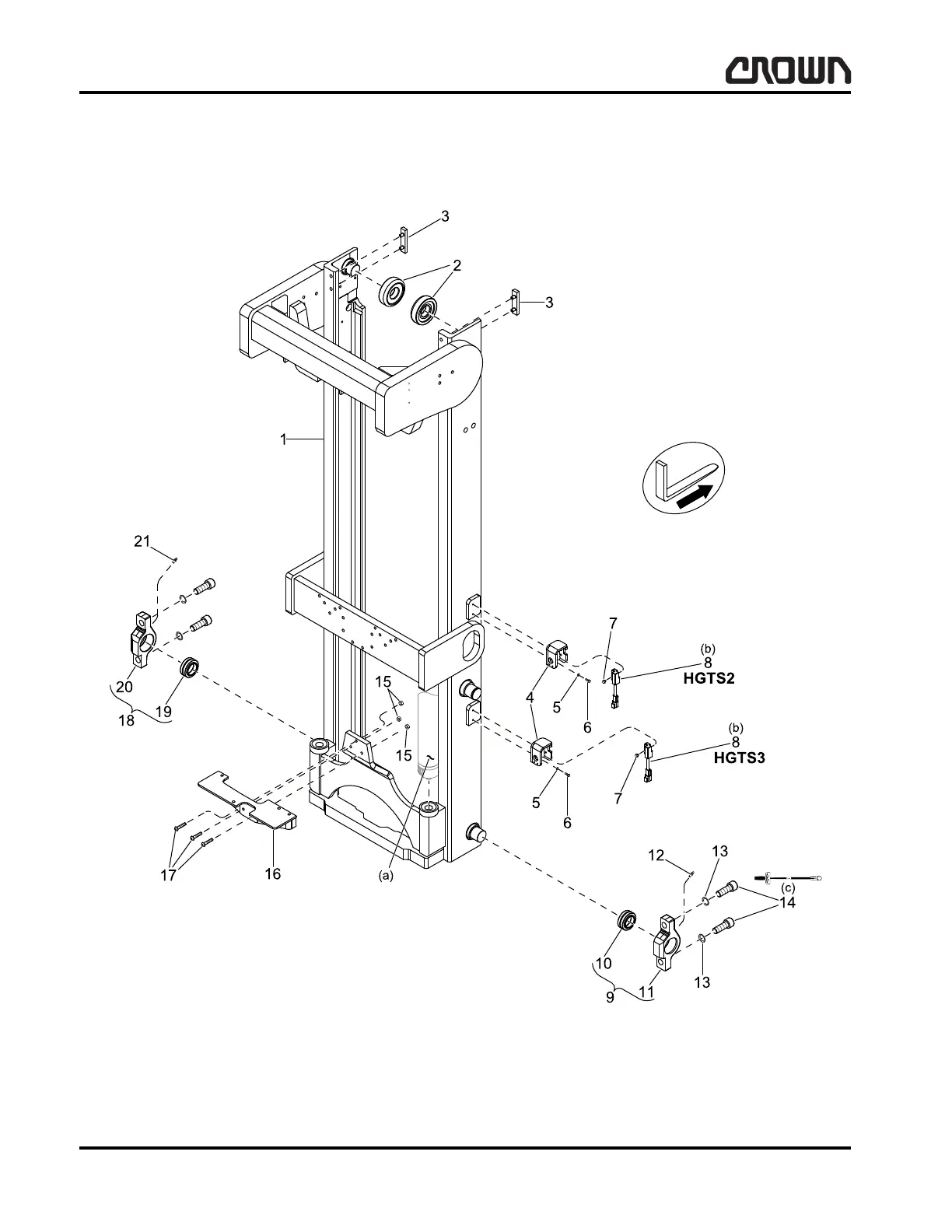

Mast - Quad
Figure 15635-03
(a) See Cylinders
(b) Trucks with 10° Tilt
(c) Torque to 550 to 600 Nm (405 to 440 ft lb)
Crown 2007 PF15643-1 Rev. 11/08
