Crown RC 5500 series - Labels & Decals Power Unit

LABELS AND DECALS
Labels & Decals Power Unit
664
10.9-1055-009
03 Rev. 12/08

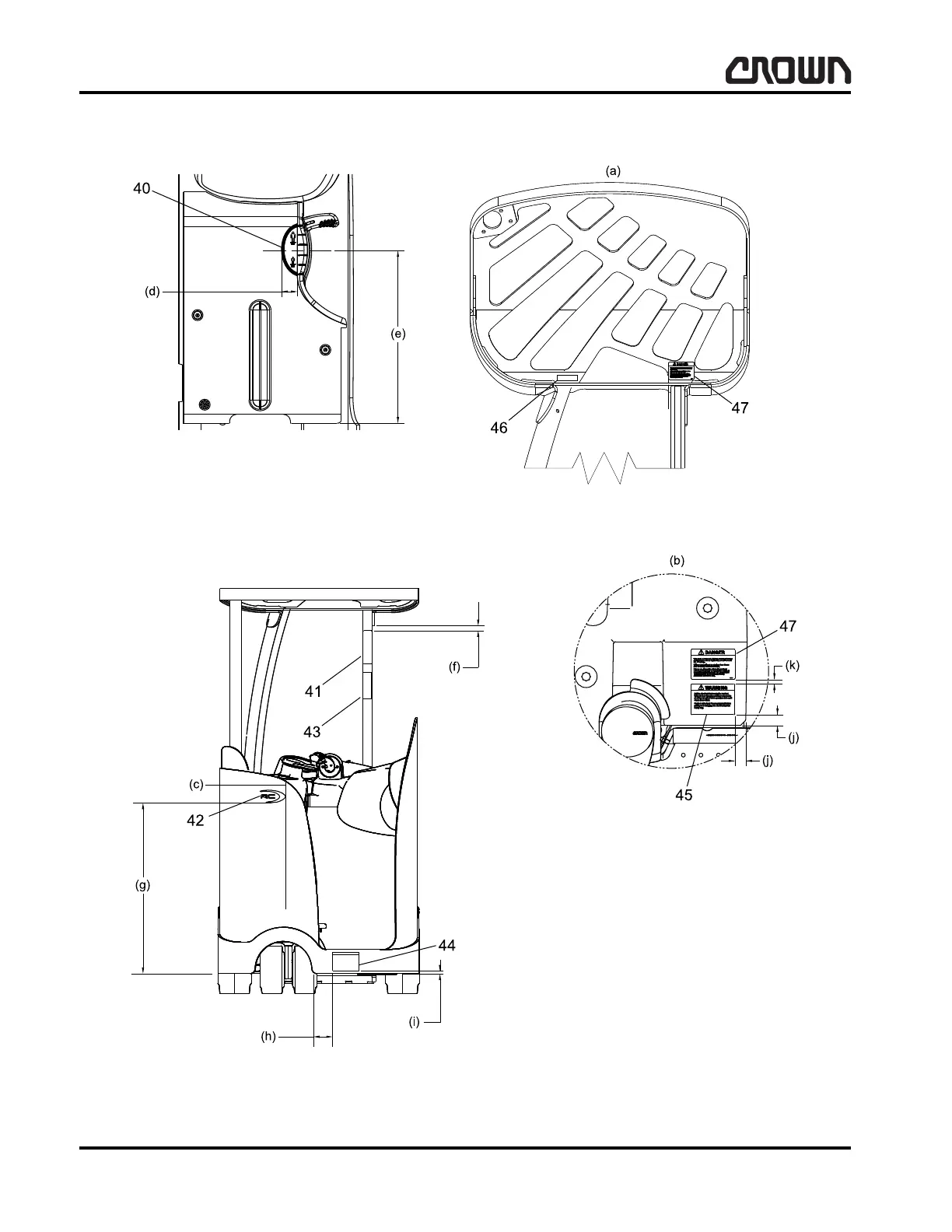

Figure 15763-01
(a) Overhead Guard
(b) On Counterweight
(c) Align
(d) 44 mm (1.73 in)
(e) 482 mm (18.98 in)
(f) 25.4 mm (1.0 in)
(g) 879 mm (34.61 in)
(h) 102 mm (4.02 in)
(i) 13.5 mm (0.53 in)
(j) 25 mm (0.98 in)
(k) 10 mm (0.39 in)
Crown 2007 PF15668-9 Rev. 12/08
