LUBRICATION & ADJUSTMENT
Componentry
72
M1.0-1055-077
01 Rev. 3/07

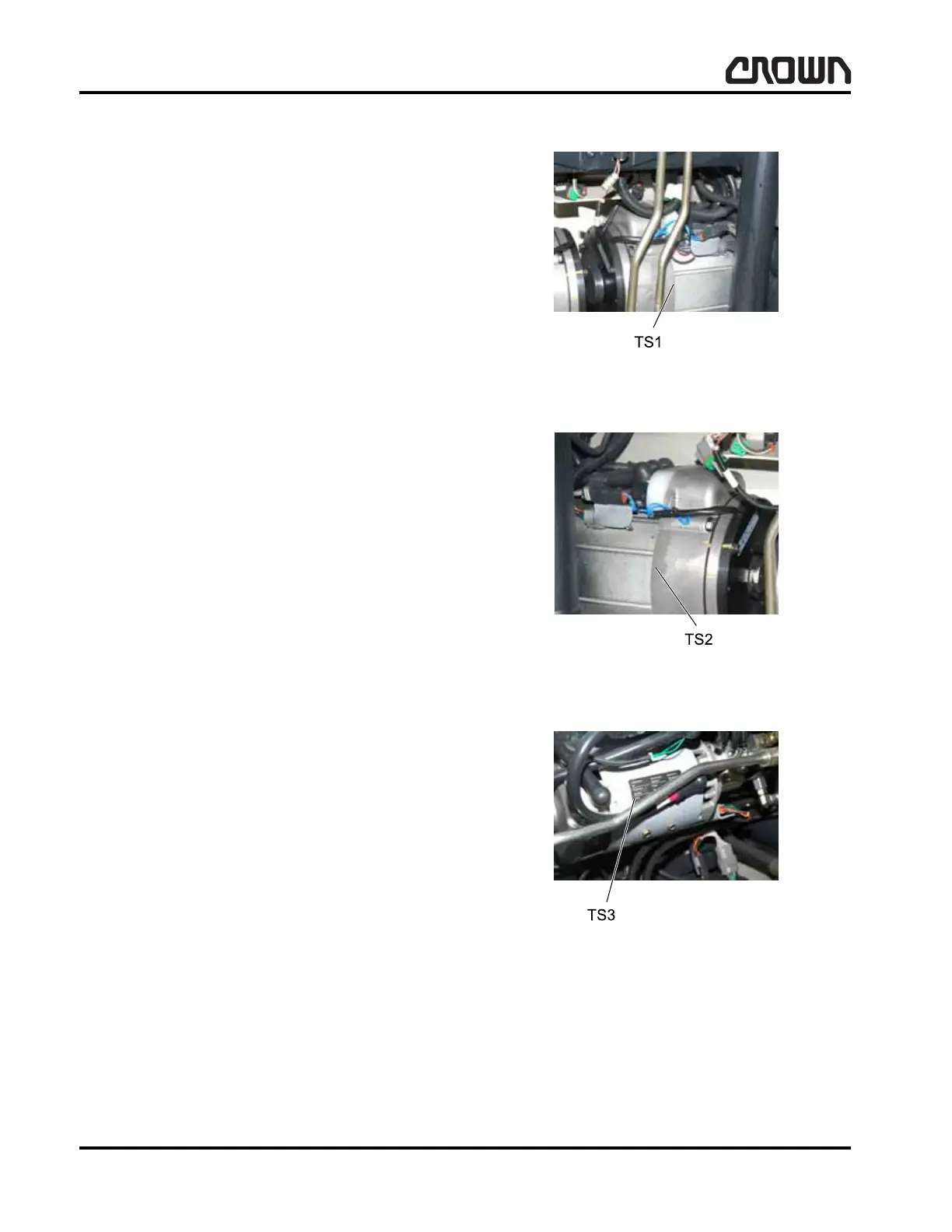

TS1
RH Traction Motor Thermal
Location: inside right hand traction motor.
Purpose: sense temperature of right hand traction mo-
tor.
Data: temperature compensated diode.
Adjustment: none required.
TS2
LH Traction Motor Thermal
Location: inside left hand traction motor.
Purpose: sense temperature of left hand traction mo-
tor.
Data: temperature compensated diode.
Adjustment: none required.
TS3
Pump Motor Thermal
Location: inside pump motor.
Purpose: sense temperature of pump motor.
Data: temperature compensated diode.
Adjustment: none required.
Figure 15953
Figure 15954
Figure 15955
Crown 2007 PF15674-28 Rev. 3/07
