341
M7.8-04.2-003
05 Rev. 11/08
LIFTING MECHANISM
Fork Inspection
Overloading
Know the capacity of the forks and truck. Fork capacity
and load center is stamped on the fork. Refer to Figure
16859-01. Overloading can cause permanent defor-
mation or serious fatigue conditions.

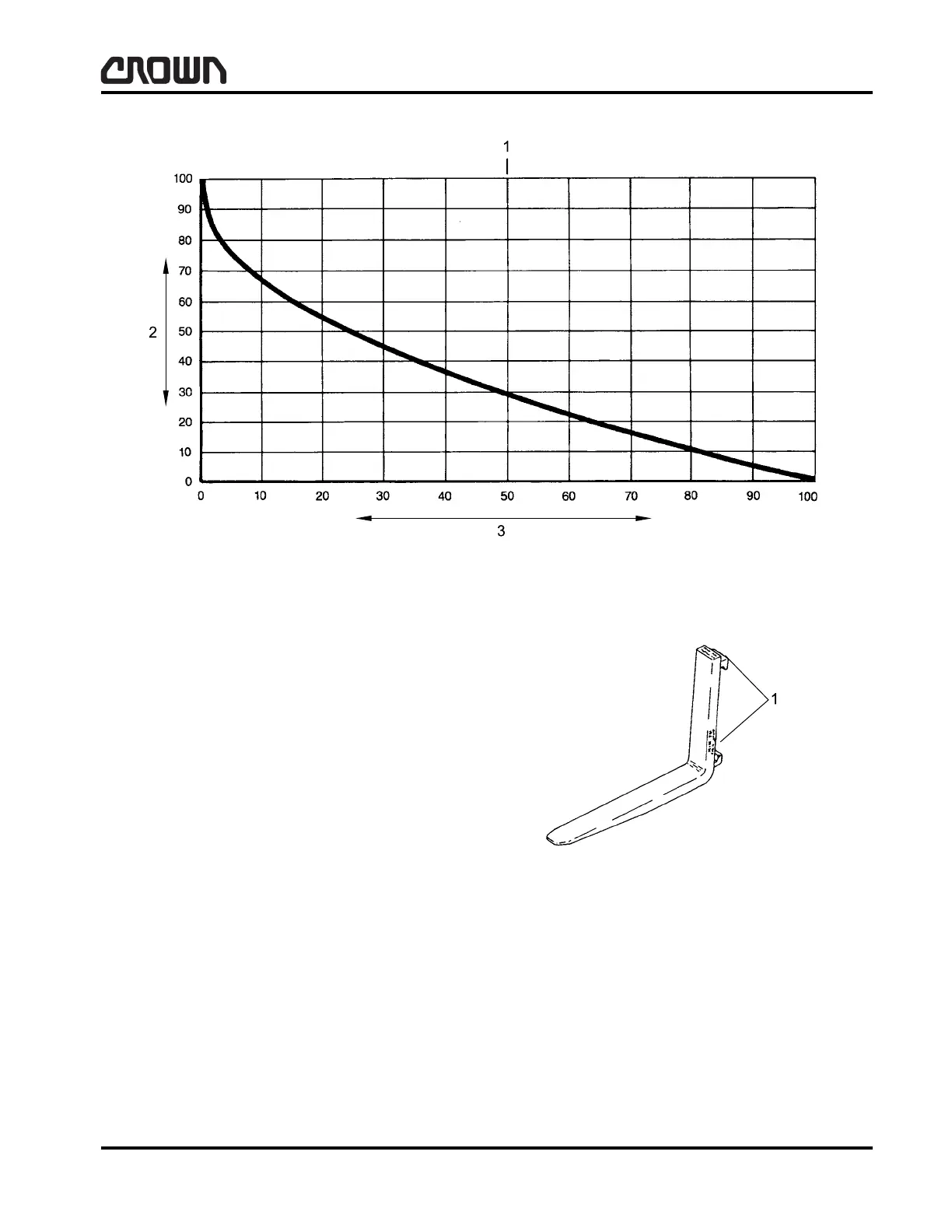

Figure 16858-01
1 Chart 2 - Wear vs. Capacity
2 Percentage Reduction in Fork Blade Thickness
3 Percentage Remaining of Specified Fork Capacity
Figure 16859-01
1 Location of Capacity and Load Center Rating
Crown 1988 PF7393-3 Rev. 11/08
