Crown RC 5500 series - Valve Assembly W;2 High Flow Accessories

HYDRAULIC PARTS
Valve Assembly W/2 High Flow Accessories
486
02.4-1055-154

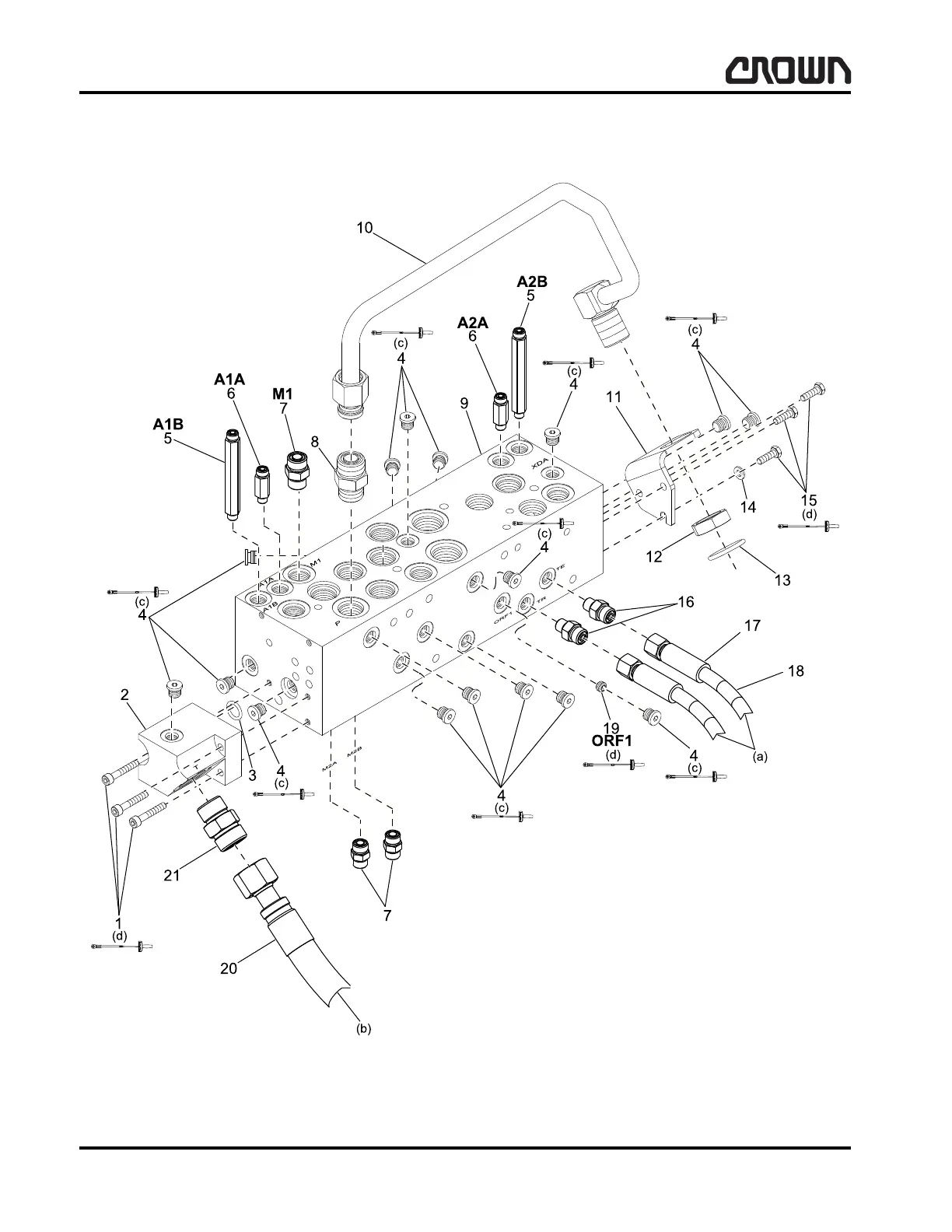

Valve Assembly W/2 High Flow Accessories
Figure 20549
(a) To Tilt Cylinders
(b) To Return Manifold Block
(c) 13.55 - 14.91 Nm (10 - 11 ft lb)
(d) 6.78 - 9.49 Nm (5 - 7 ft lb)
Crown 2008 PF17504-1
