Crown RC 5500 series - TDS

71
M1.0-1055-076
01 Rev. 3/07
LUBRICATION & ADJUSTMENT
Componentry
TDS
Tilt Down Switch
Location: multi-task handle.
Purpose: allows operator to select tilt down function of
hydraulic system.
Data: printed circuit board mounted push button switch
wired normally open.
Adjustment: none required.
TR1
K1 inrush
Location: distribution panel.
Purpose: reduce inrush Access 2/Access 3 power up.
Data: not applicable.
Adjustment: none required.
TR2
KYS inrush
Location: distribution panel.
Purpose: reduce inrush of Access 1 power up.
Data: not applicable.
Adjustment: none required.

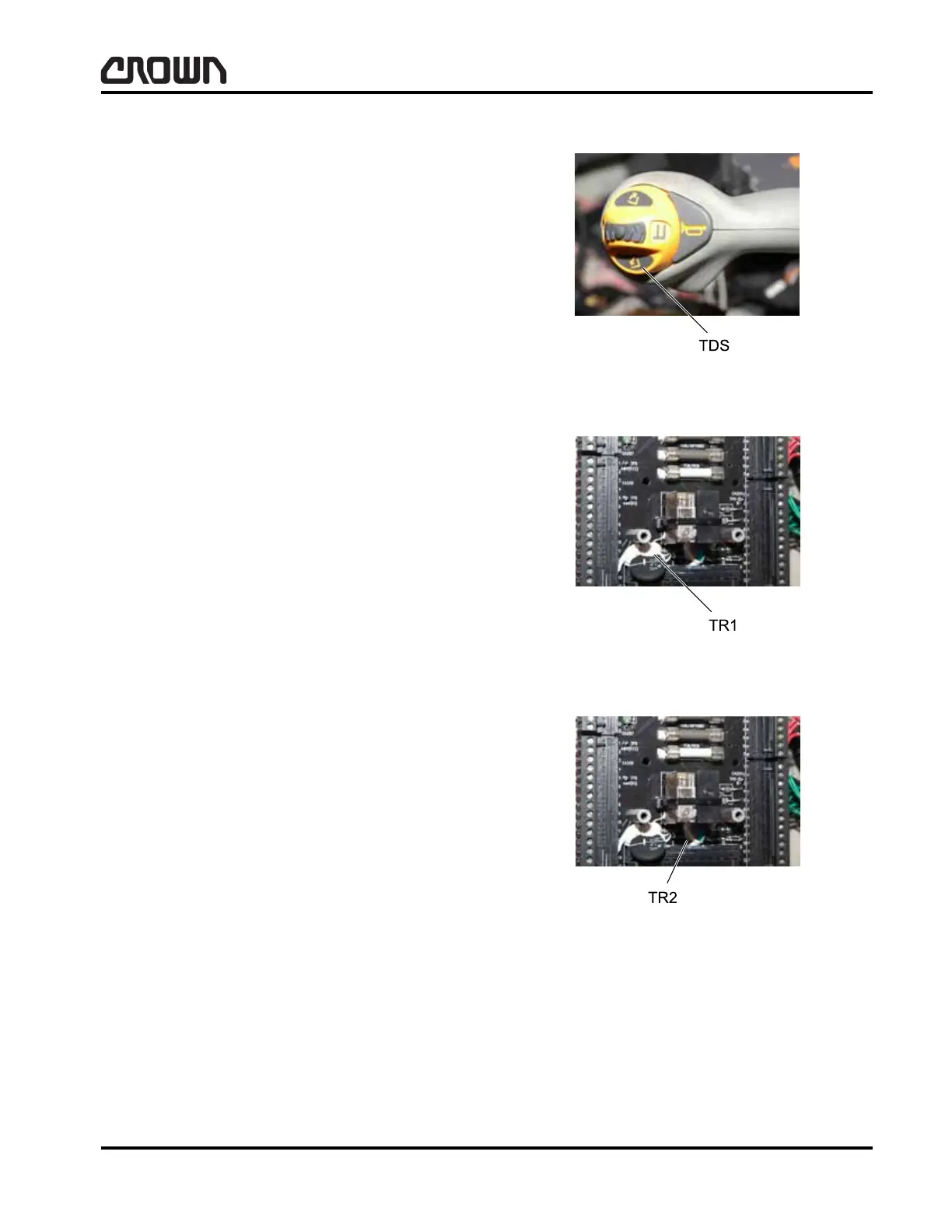

Figure 15949
Figure 15951
Figure 15952
Crown 2007 PF15674-27 Rev. 3/07
