LABELS AND DECALS
Labels & Decals InfoPoint/Access
666
10.9-1055-011
03 Rev. 12/08
Labels & Decals InfoPoint/Access

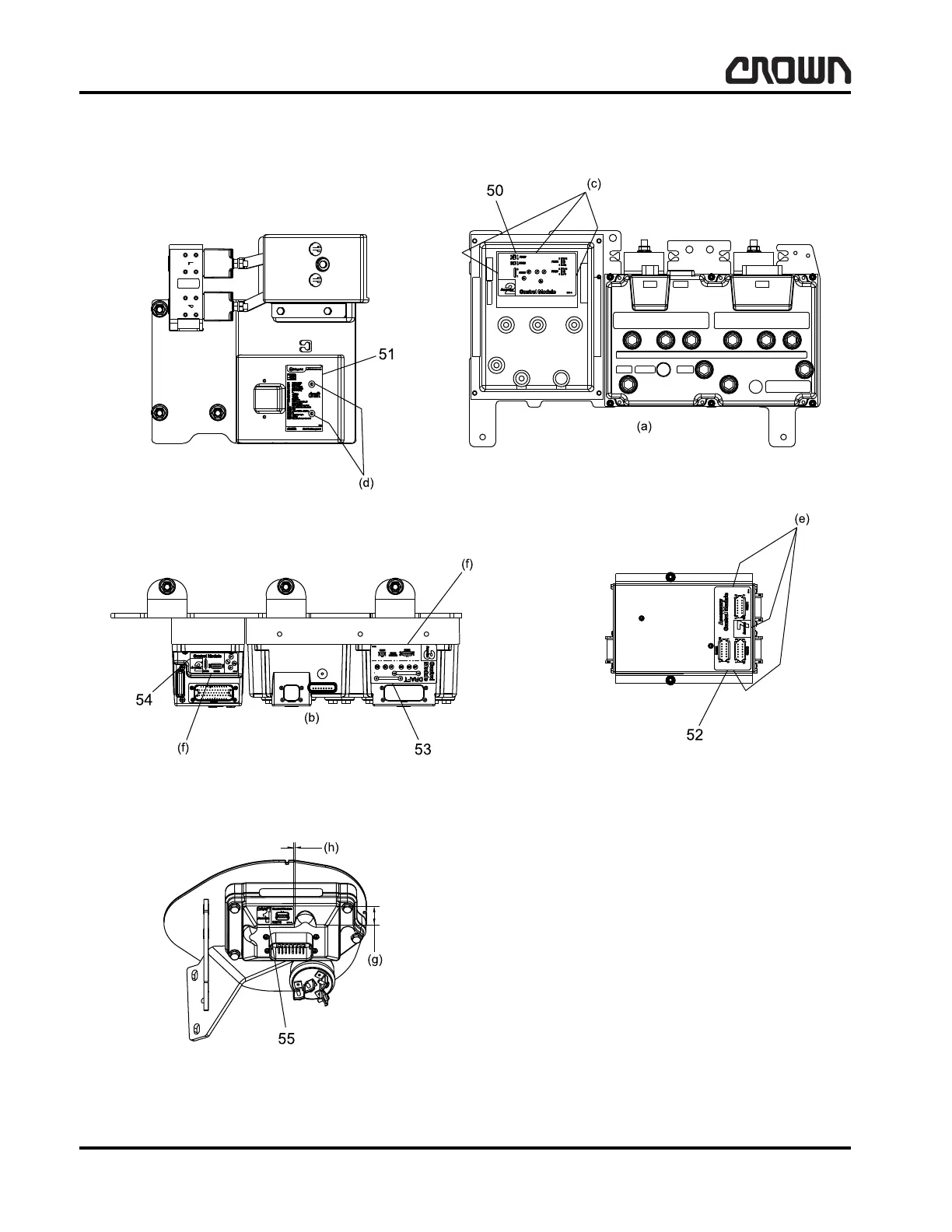

Figure 15768-01
(a) RC 5500 AC Access2 Label
(b) RC 5500 DC Access2 Label
(c) Center Label in Depression 3 Equal Gaps
(d) Center Screw Heads in Holes in Label
(e) 3 Gaps to be Equal Size
(f) Center Label on Flat Surface
(g) Center Label Between Tangent Edges
(h) 1 mm (0.04 in)
