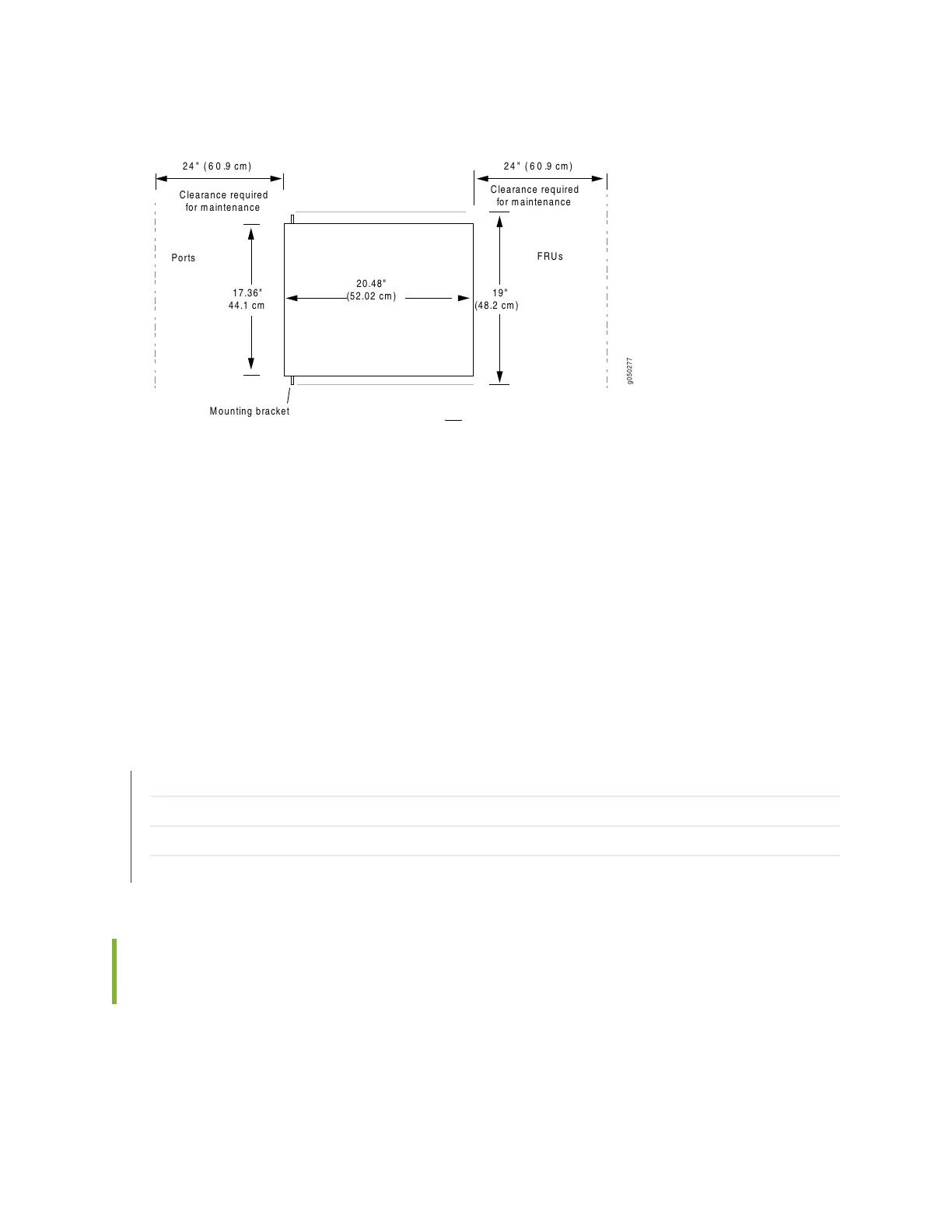

Figure 46: Clearance Requirements for Airflow and Hardware Maintenance for a QFX5100 Device
FRUs
Ports
Mounting bracket
17.36"
44.1 cm
20.48"
(52.02 cm)
Clearance required
for maintenance
Clearance required
for maintenance
g050277
19"
(48.2 cm)
24 " ( 6 0 .9 cm) 24 " ( 6 0 .9 cm)
For the cooling system to function properly, the airflow around the chassis must be unrestricted. See
Cooling System and Airflow in a QFX5100 Device for more information about the airflow through the
chassis.
If you are mounting a QFX5100 device in a rack or cabinet with other equipment, ensure that the exhaust
from other equipment does not blow into the intake vents of the chassis.
Leave at least 24 in. (61 cm) both in front of and behind the QFX5100 device. For service personnel to
remove and install hardware components, you must leave adequate space at the front and back of the
switch. NEBS GR-63 recommends that you allow at least 30 in. (76.2 cm) in front of the rack or cabinet
and 24 in. (61 cm) behind the rack or cabinet.
RELATED DOCUMENTATION
Rack Requirements for a QFX5100 Device | 111
Cabinet Requirements for a QFX5100 Device | 117
General Site Guidelines
Rack-Mounting and Cabinet-Mounting Warnings | 224
Clearance Requirements for Airflow and Hardware Maintenance for a
QFX3600 or QFX3600-I Device
When planning the site for installing a QFX3600 or QFX3600-I device, you must allow sufficient clearance
around the installed device (see Figure 47 on page 124).
123
