Table 4: Components in 24-Port EX4300 Switches (continued)
Supported
Uplink Module
Power Supply
Shipped by
Default
Fan Modules
Shipped by
Default
Number of
PoE-Enabled
PortsBuilt-In Ports
Switch
Models
4-port 10-Gigabit
Ethernet SFP+
uplink module
(model number:
EX-UM-4X4SFP)
Power supplies
for this model
are not shipped
by default; you
must order
either AC power
supplies or DC
power supplies
separately.
Fan modules for
this model are
not shipped by
default; you must
order two fan
modules labeled
either AIR OUT
(AFO) or AIR IN
(AFI) separately.
2424
10/100/1000BASE-T
Ethernet ports and
four QSFP+ ports
EX4300-24P-S
You can use the QSFP+ ports as network ports or as Virtual Chassis ports (VCPs) to connect the switch
in a Virtual Chassis or a VCF. By default, the built-in QSFP+ ports are configured as VCPs. You can also
use the uplink module ports to connect members of a Virtual Chassis or a VCF across multiple wiring
closets by configuring the ports as VCPs. For more information about Virtual Chassis, see Understanding
EX Series Virtual Chassis. For more information about VCFs, see “Virtual Chassis Fabric Overview” on
page 2.
32-Port EX4300 Switches
The 32-port EX4300 switches—EX4300-32F and EX4300-32F-DC—provide 32 built-in 1-Gigabit Ethernet
small form-factor pluggable (SFP) network ports that can house SFP transceivers, four built-in 10-Gigabit
Ethernet small form-factor pluggable plus (SFP+) ports that can house SFP+ and SFP transceivers, and two
built-in quad small form-factor pluggable plus (QSFP+) ports that can house 40-Gigabit QSFP+ transceivers.
They support power supply and fan module with front-to-back airflow direction and have a slot for installing
an optional uplink module—a 2-port 40-Gigabit Ethernet QSFP+ uplink module (model number:
EX-UM-2QSFP) that can house two QSFP+ transceivers or an 8-port 10-Gigabit Ethernet SFP+ uplink
module (model number: EX-UM-8X8SFP) that can house eight SFP+ transceivers, eight SFP transceivers,
or a combination of SFP and SFP+ transceivers in the eight ports on the uplink module.

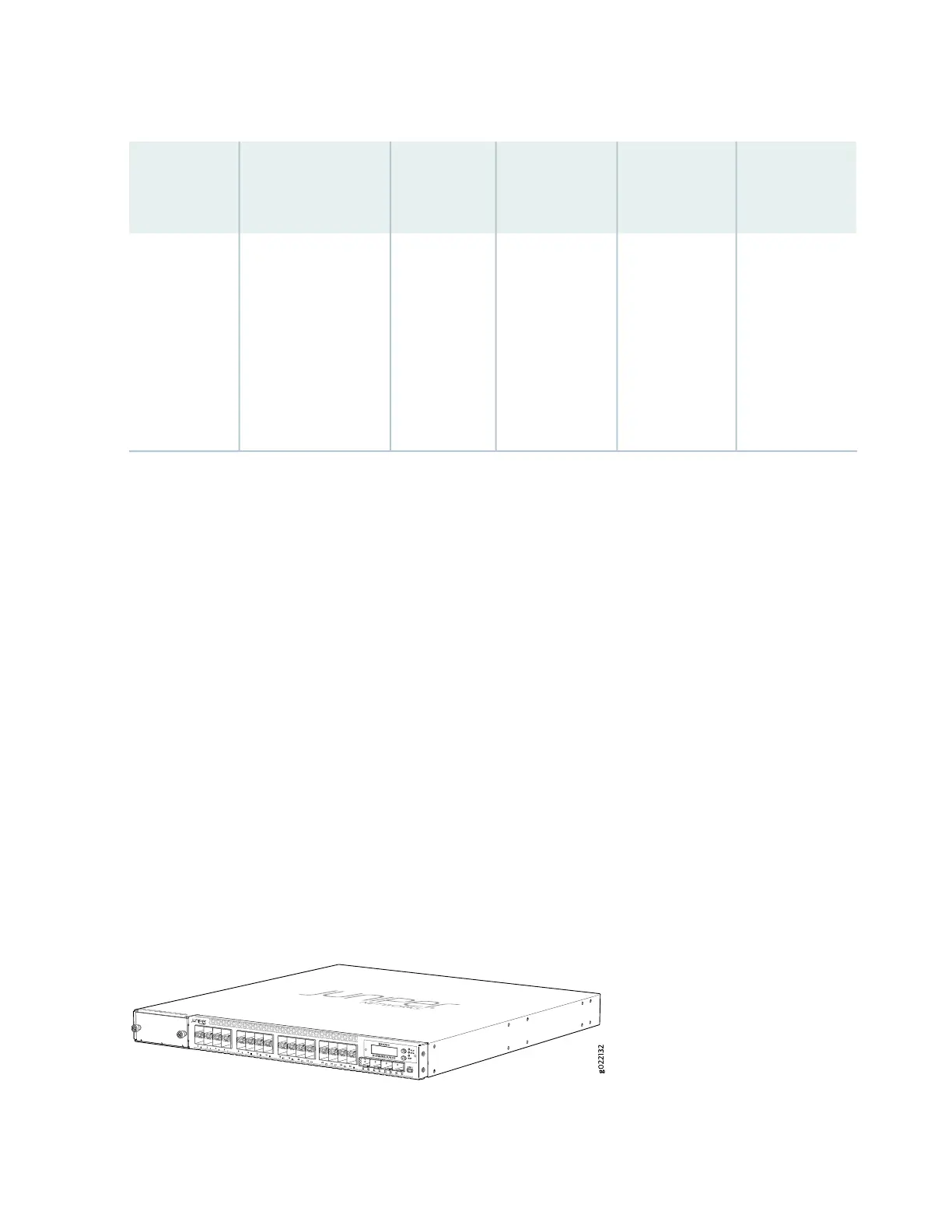

Figure 32 on page 62 shows the front panel of a 32-port EX4300 switch.
Figure 32: Front Panel of a 32-Port EX4300 Switch
