Connecting a QFX5100 Device in a Virtual Chassis Fabric | 295
Management Port Connector Pinouts for the QFX Series | 132
Port Panel of a QFX5100-96S Device
IN THIS SECTION
Switch Ports | 42
Channelizing Interfaces | 42
Virtual Chassis and Virtual Chassis Fabric Support | 43
The port panel of the QFX5100-96S switch consists of 96 small form-factor pluggable plus (SFP+) and 8
quad small-form factor pluggable plus (QSFP+) ports that are normally configured as access ports. Physical
ports(0 through 95) support 10 Gbps SFP+ transceivers and 1 Gbps transceivers. The eight 40-Gigabit
ports (96 through 104) support QSFP+ transceivers and are normally configured as uplinks or Virtual
Chassis ports (VCPs). Although the 104 physical ports of the QFX5100-96S would map to 128 logical
ports using channelization, only 104 logical ports are supported.
Figure 20 on page 41 shows the port panel of a QFX5100-96S switch.

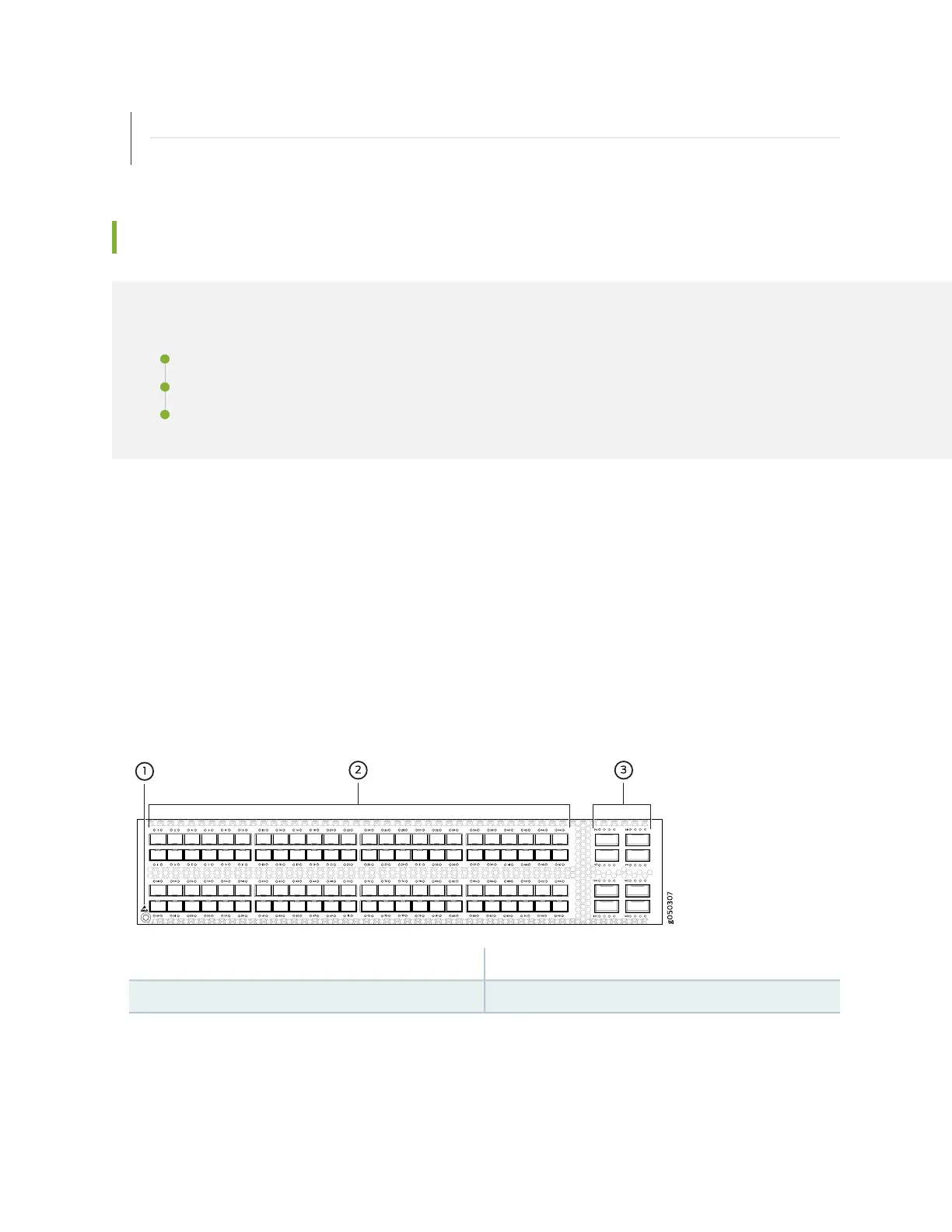

Figure 20: QFX5100-96S Switch Port Panel
31 40 Gigabit Ethernet ports (8)Electrostatic Discharge (ESD) terminal
210 Gigabit Ethernet ports (96)
This topic describes:
41
