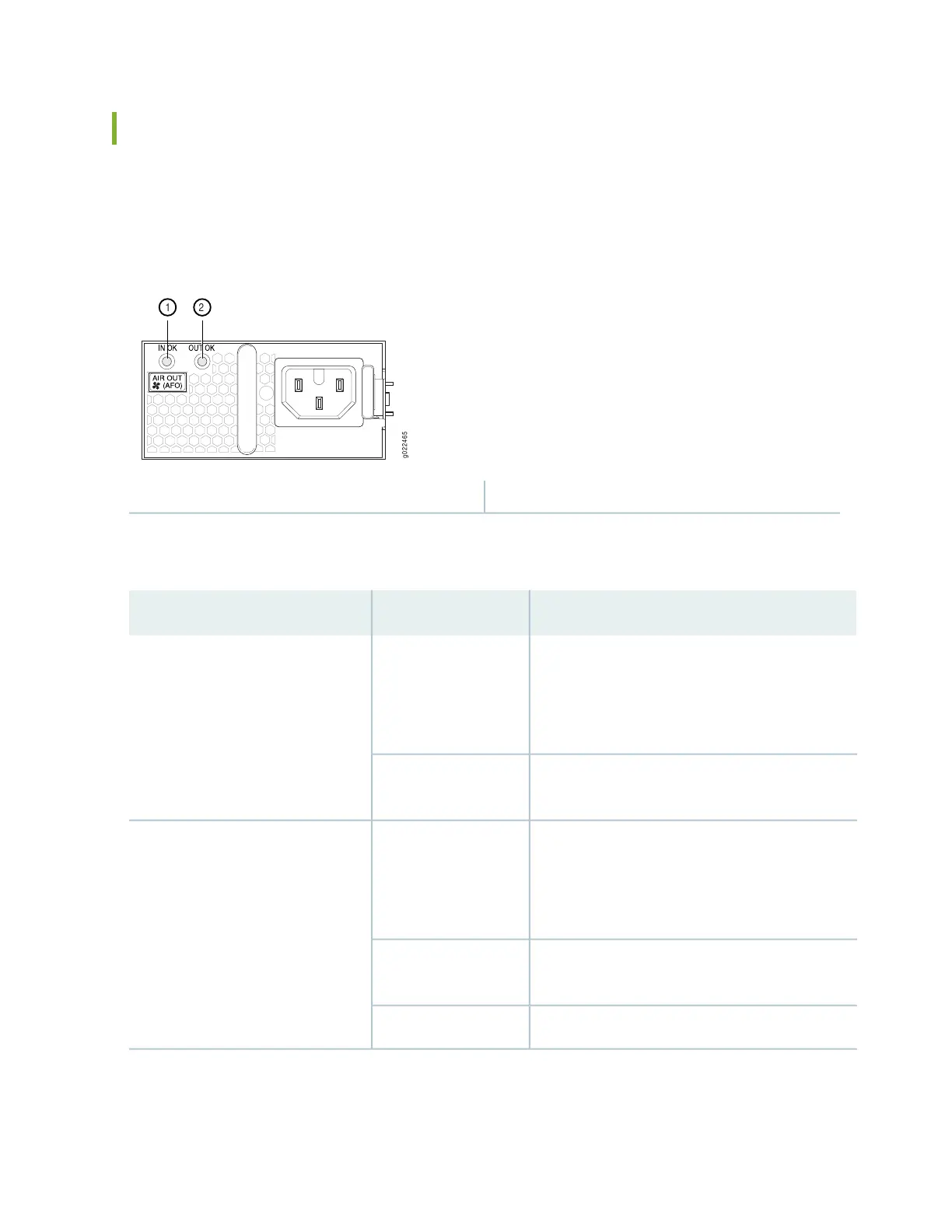

AC Power Supply LEDs in EX4300 Switches
Figure 216 on page 575 shows the location of the LEDs on an AC power supply for EX4300 switches except
EX4300-48MP and EX4300-48MP-S switches.
Figure 216: LEDs on AC Power Supply for EX4300 Switches
g022465
1
2
21 OUT OK LEDIN OK LED
Table 129 on page 575 describes the AC power supply LEDs.
Table 129: AC Power Supply LEDs in EX4300 Switches
DescriptionColorLED
Indicates one of the following:
AC power input voltage is not within normal
operating range.
No AC power input.
UnlitIN OK
Power supply is receiving proper input power and
is functioning normally.
Green
Indicates one of the following:
IN OK LED is unlit.
The power supply is not delivering power
correctly.
UnlitOUT OK
The power supply is delivering power and is
functioning correctly.
Green
The power supply has failed and must be replaced.Red
575
