NOTE: You must remove the fan tray to read the fan tray serial number from the serial number
ID label. The fan tray serial number cannot be viewed through the CLI.
Locating the Chassis Serial Number ID Label on a QFX3600 or QFX3600-I Device
The chassis serial number ID label is located on a sliding panel to the right of the QSFP+ ports on the front
panel of a QFX3600 or QFX3600-I device. See Figure 225 on page 595.

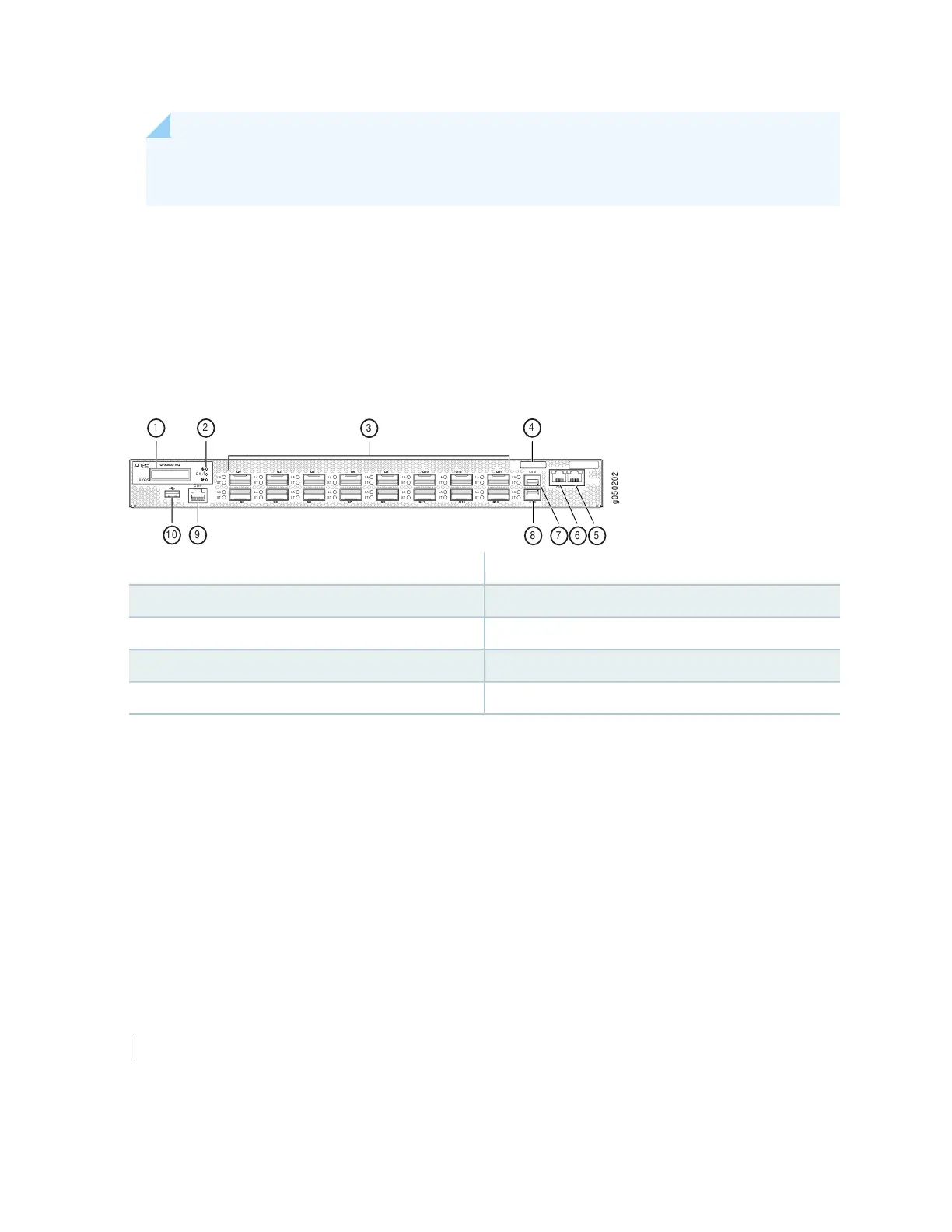

Figure 225: Location of the Serial Number ID Label on a QFX3600 or QFX3600-I Device
OK /!
QFX3600-16Q
CON
LA
ST
LA
ST
Q0
Q1
LA
ST
LA
ST
Q2
Q3
LA
ST
LA
ST
Q4
Q5
LA
ST
LA
ST
Q6
Q7
LA
ST
LA
ST
Q8
Q9
LA
ST
LA
ST
Q10
Q11
LA
ST
LA
ST
Q12
Q13
LA
ST
LA
ST
Q14
Q15
LA
ST
LA
ST
C1 S
C0
C1
C0 S
g050202
8
7
6
5
10
2
4
9
1
3
6—1— C0 management portLCD panel
7—2— COS management portChassis status LEDs
8—3— C1S management portAccess and uplink ports
9—4— Console (CON) portChassis serial number label and ESD point
10—5— USB portC1 management port
Locating the Serial Number ID Labels on FRU Components
The power supplies and fan trays installed in QFX3600 and QFX3600-I devices are field-replaceable units
(FRUs). For each FRU, you must remove the FRU from the device chassis to see the FRU serial number ID
label.
•
AC power supply—The serial number ID label is on the top of the AC power supply.
•
Fan tray—The serial number ID label is on the top of the fan tray.
