Back Airflow - AFO
Fan Tray 2 fan-ctrl-2 2, Front to
Back Airflow - AFO
Fan Tray 3 fan-ctrl-2 3, Front to
Back Airflow - AFO
Fan Tray 4 fan-ctrl-2 4, Front to
Back Airflow - AFO
{master:0}
root>
NOTE: You must remove the fan module to read the fan serial number from the serial number
ID label. The fan module serial number cannot be viewed through the CLI. Fan Tray 2 refers to
the third module from the left, counting from 0.
Locating the Chassis Serial Number ID Label on a QFX5110
The chassis serial number ID label is located on the right side of the QFX5110 port panel. On legacy
switches, or switches with an LCD, the port panel is referred to as the front panel. See Figure 218 on page 588
for an example of where to find the serial number ID.

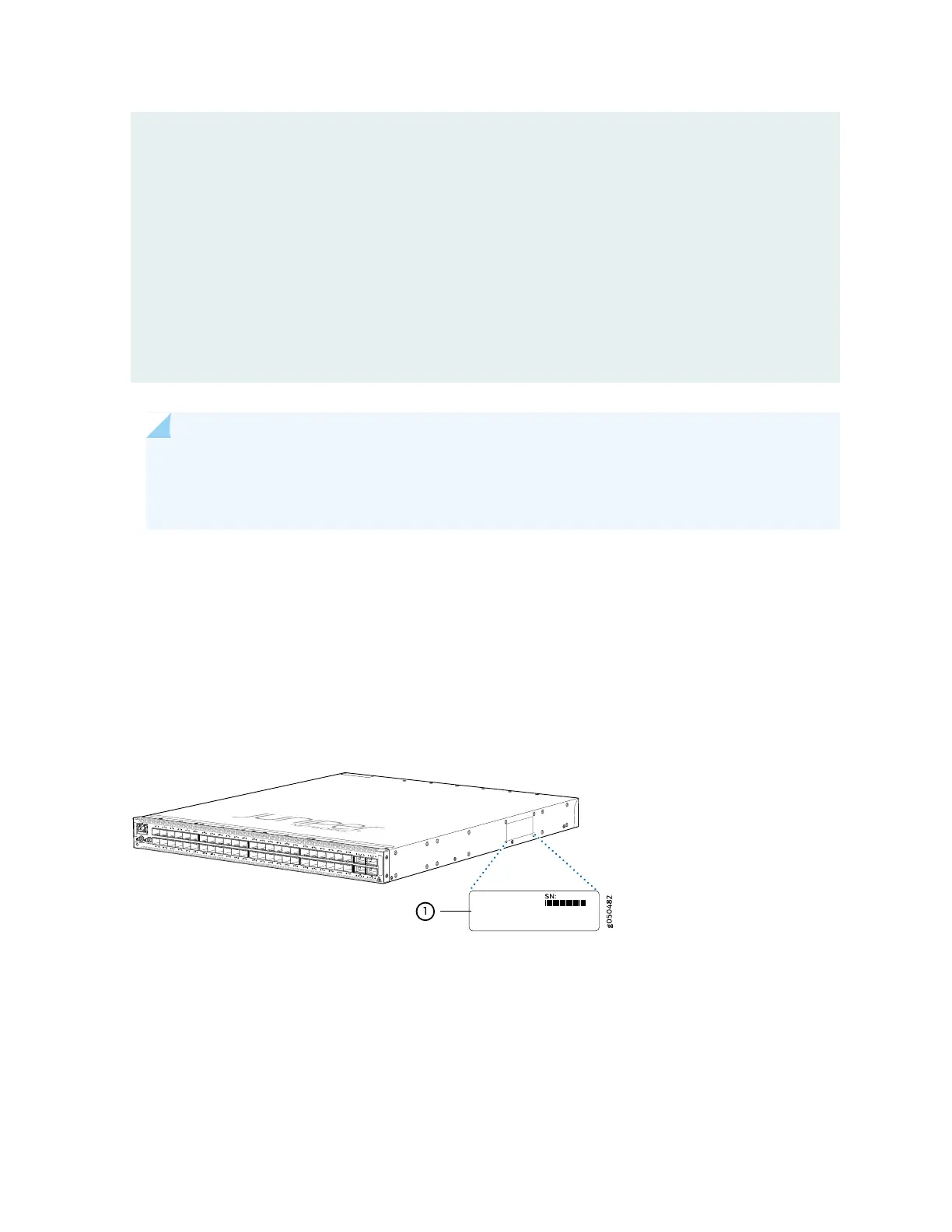

Figure 218: Location of the Serial Number ID Label on a QFX5110
Locating the Serial Number ID Labels on FRU Components
The power supplies and fan modules installed in a QFX5110 are field-replaceable units (FRUs). For each
FRU, you must remove the FRU from the switch chassis to see the FRU serial number ID label.
588
