Chassis Status LEDs on a QFX3500 Device
The front panel of the QFX3500 device has three LEDs on the right side of the management board, next
to the LCD panel (see Figure 197 on page 527).

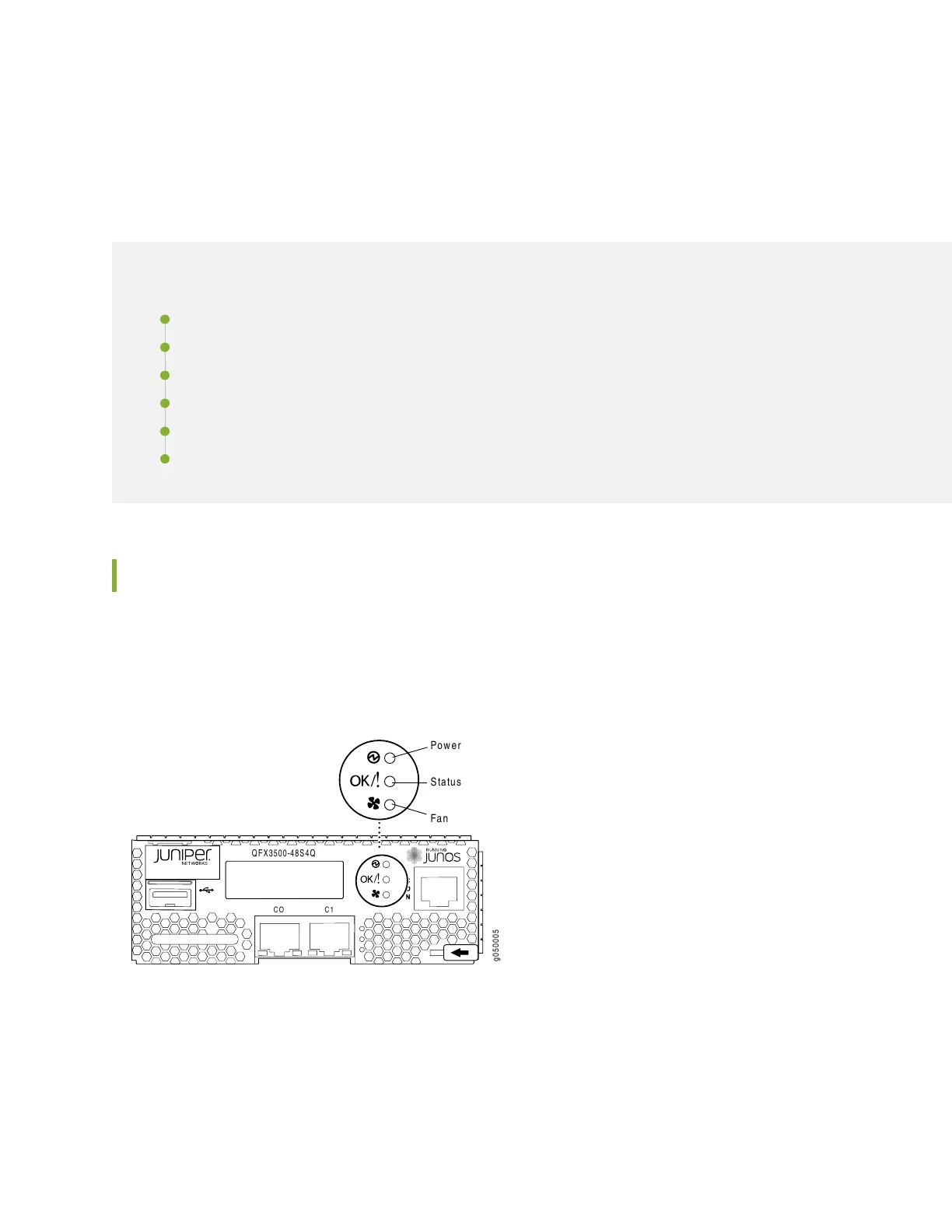

Figure 197: Chassis Status LEDs on a QFX3500 Device
QFX3500-48S4Q
CO C1
g050005
Power
Status
Fan
Table 96 on page 528 describes the chassis status LEDs on a QFX3500 device, their colors and states, and
the status they indicate. You can view the colors of the three LEDs remotely through the CLI by issuing
the operational mode command show chassis lcd.
