3. Secure the grounding lug to the protective earthing terminal with the washers and screws. See
Figure 72 on page 285 and Figure 73 on page 285.

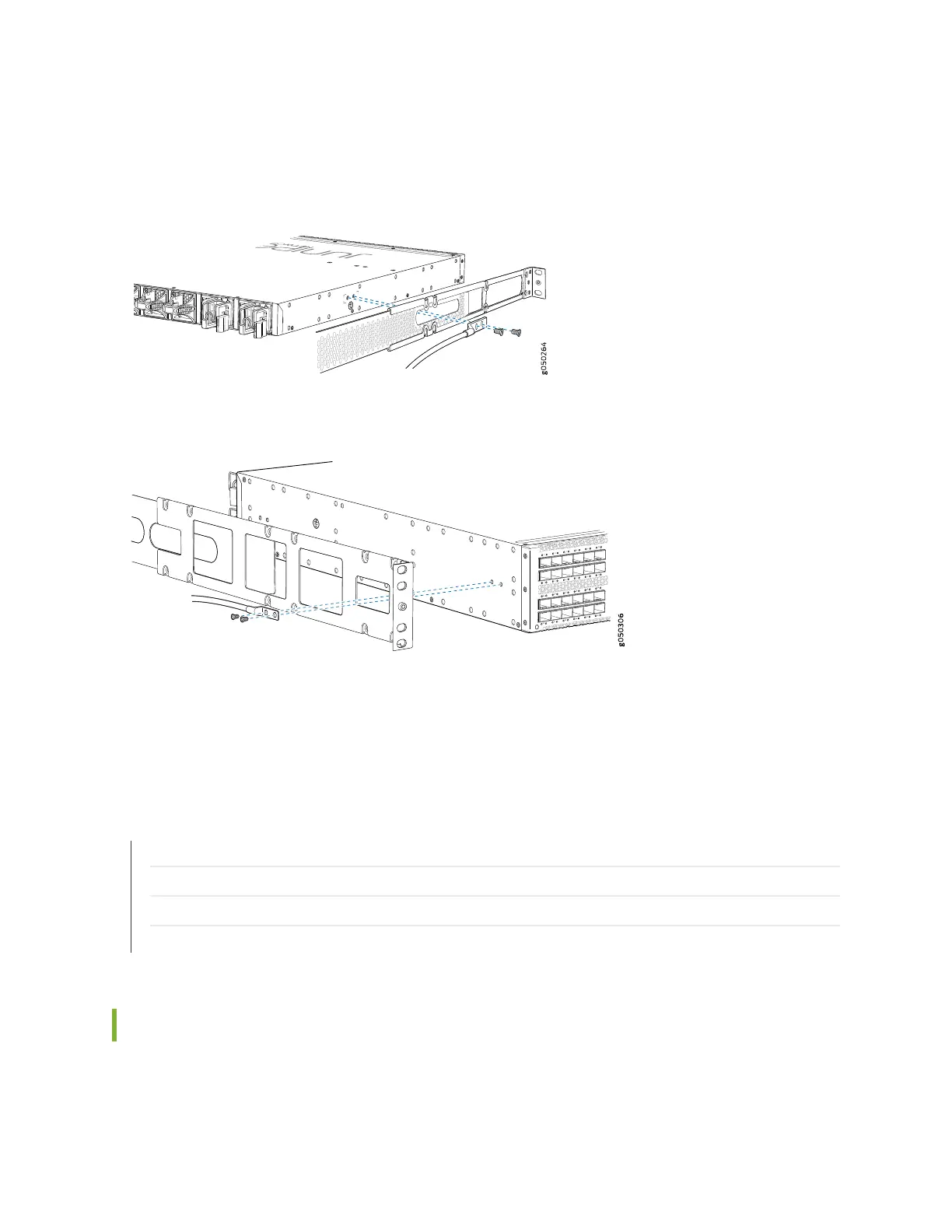

Figure 72: Connecting a Grounding Cable to a 1 U QFX5100 Device
Figure 73: Connecting a Grounding Cable to the 2 U QFX5100-96S Device
48
49
0
1
2
3
4
5
6
7
8
9
10
11
50
51
52
53
54
55
56
57
58
59
4. Dress the grounding cable and ensure that it does not touch or block access to other device components
and that it does not drape where people could trip over it.
RELATED DOCUMENTATION
General Safety Guidelines and Warnings | 203
Grounded Equipment Warning | 230
Connecting AC Power to a QFX5100 Device | 285
Connecting DC Power to a QFX5100 Device | 288
Connecting AC Power to a QFX5100 Device
The QFX5100 is shipped from the factory with two power supplies. Each power supply is a hot-removable
and hot-insertable field-replaceable unit (FRU) when the second power supply is installed and running.
285
