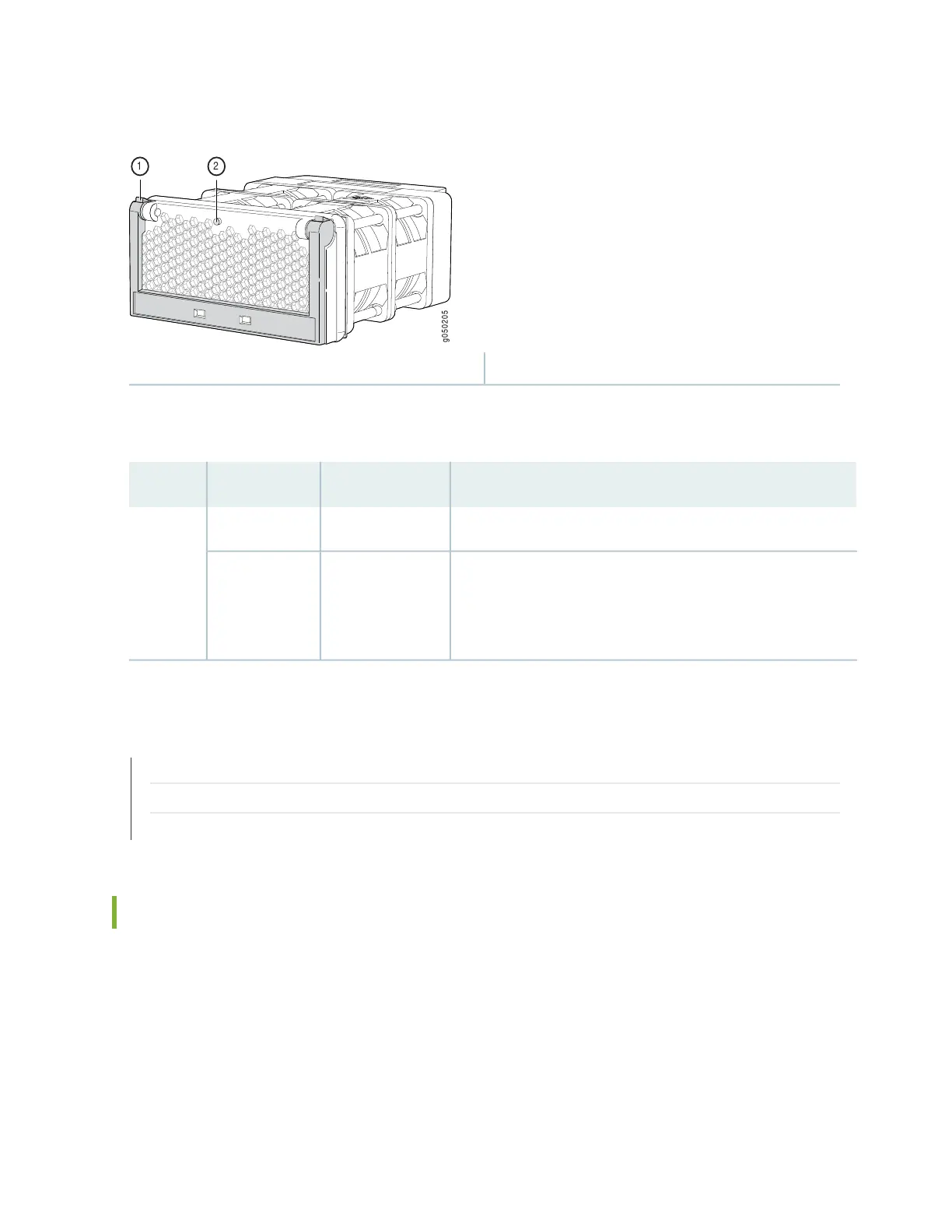

Figure 194: Fan Tray
g050205
1 2
2—1— LEDHandle
Table 93 on page 523 describes the function of the fan tray LED.
Table 93: Fan Tray LED
DescriptionStateColorName
The fan tray is operating normally.On steadilyGreenFan
An error has been detected in the fan tray. Replace the fan tray
as soon as possible. To maintain proper airflow through the
chassis, leave the fan tray installed in the chassis until you are
ready to replace it.
BlinkingAmber
RELATED DOCUMENTATION
Cooling System and Airflow for QFX3600 and QFX3600-I Devices
Installing a Fan Tray in a QFX3600 or QFX3600-I Device | 450
Removing a Fan Tray from a QFX3600 or QFX3600-I Device | 449
AC Power Supply LEDs on a QFX3500, QFX3600, or QFX3600-I Device
Figure 195 on page 524 shows the location of the LEDs on the power supply.
523

Juniper QFX5110 Series Specifications

General

Rack Units	1U
Operating System	Junos OS
Form Factor	Fixed
Management	CLI, SNMP, NETCONF
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 90% non-condensing
AC Power Input	100-240 VAC
Power Supply	Redundant, hot-swappable
