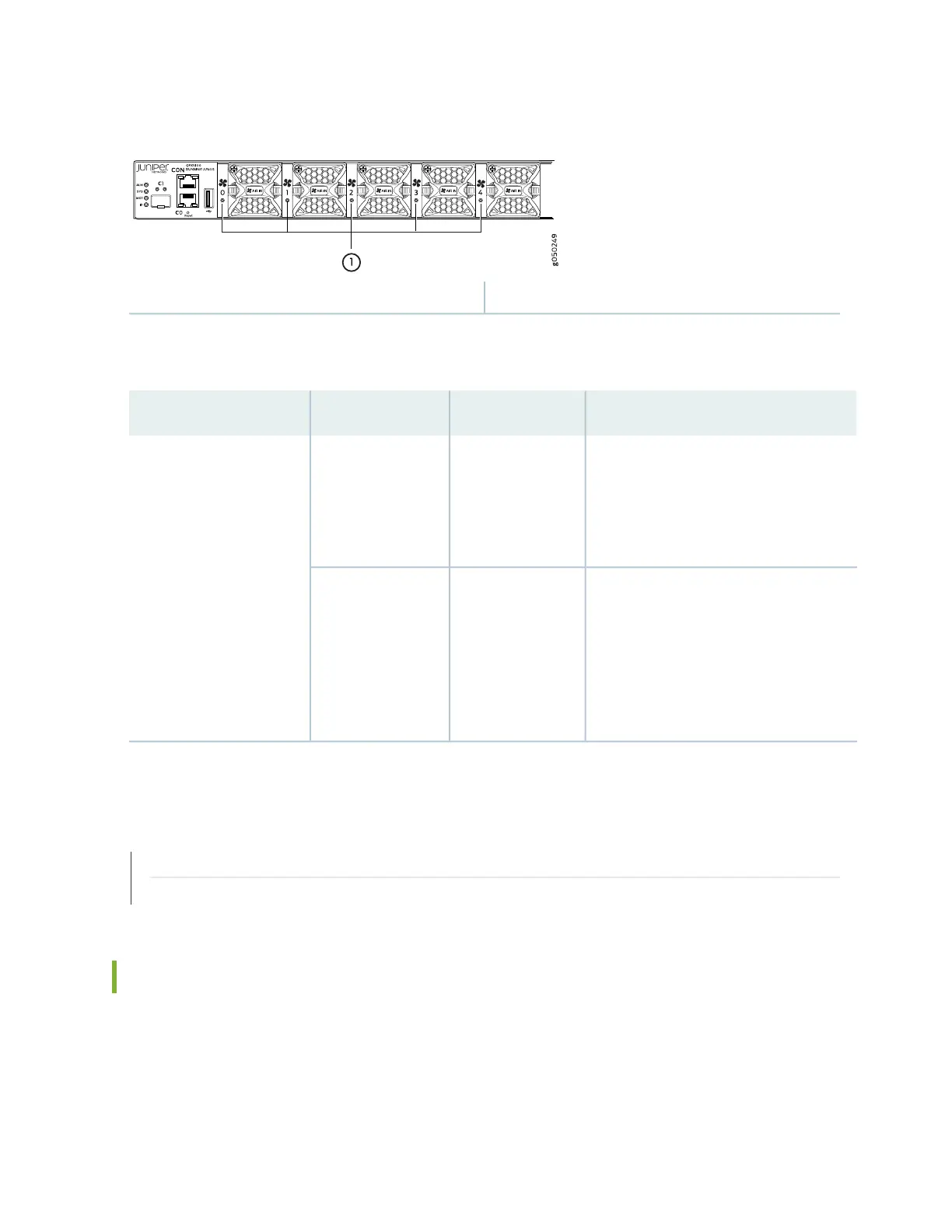

Figure 188: Fan Module LED in a QFX5100 Switch
1
1—Fan LED
Table 86 on page 514 describes the function of the fan tray LED.
Table 86: Fan Tray LED in a QFX5100 Switch
DescriptionStateColorName
The fan module is operating normally. The
system has verified that the module is
engaged, that the airflow is in the correct
direction, and that the fan is operating
correctly.
On steadilyGreenFan
An error has been detected in the fan
module. Replace the fan module as soon
as possible. Either the fan has failed or it
is seated incorrectly. To maintain proper
airflow through the chassis, leave the fan
module installed in the chassis until you
are ready to replace it.
BlinkingAmber
RELATED DOCUMENTATION
Installing a Fan Module in a QFX5100 Device | 440
Removing a Fan Module from a QFX5100 Device | 442
AC Power Supply LEDs on a QFX5100 Device
Figure 189 on page 515 shows the location of the LEDs on the power supply.
514

Juniper QFX5110 Series Specifications

General

Rack Units	1U
Operating System	Junos OS
Form Factor	Fixed
Management	CLI, SNMP, NETCONF
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 90% non-condensing
AC Power Input	100-240 VAC
Power Supply	Redundant, hot-swappable
