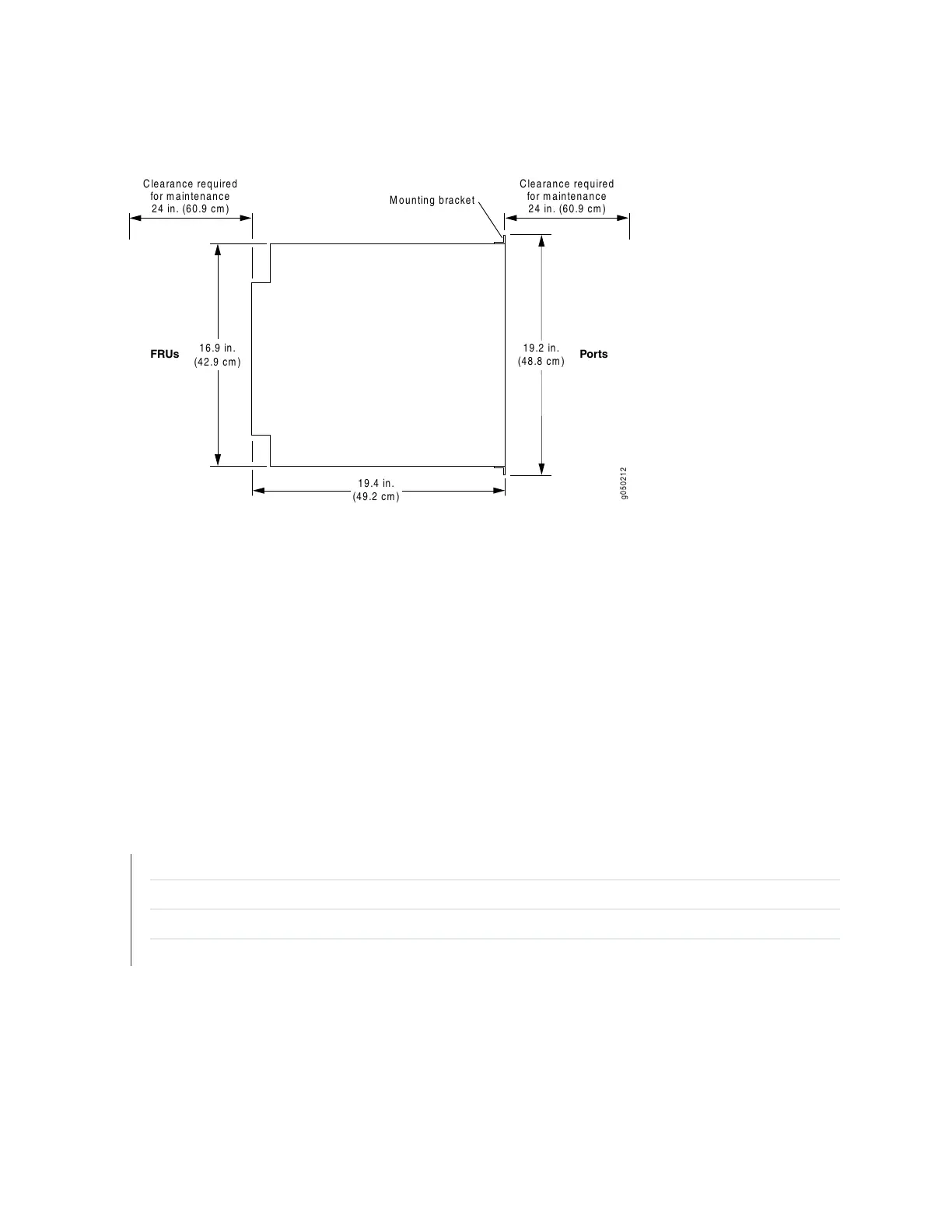

Figure 47: Clearance Requirements for Airflow and Hardware Maintenance for a QFX3600 or QFX3600-I
Device
FRUs
Ports
g050212
16.9 in.
(42.9 cm)
19.2 in.
(48.8 cm)
Mounting bracket
Clearance required
for maintenance
24 in. (60.9 cm)
19.4 in.
(49.2 cm)
Clearance required
for maintenance
24 in. (60.9 cm)
•
For the cooling system to function properly, the airflow around the chassis must be unrestricted. See
Cooling System and Airflow for QFX3600 and QFX3600-I Devices for more information about the airflow
through the chassis.
•
If you are mounting a QFX3600 or QFX3600-I device in a rack or cabinet with other equipment, ensure
that the exhaust from other equipment does not blow into the intake vents of the chassis.
•
Leave at least 24 in. (61 cm) both in front of and behind the QFX3600 or QFX3600-I device. For service
personnel to remove and install hardware components, you must leave adequate space at the front and
back of the device. NEBS GR-63 recommends that you allow at least 30 in. (76.2 cm) in front of the rack
or cabinet and 24 in. (61 cm) behind the rack or cabinet.
RELATED DOCUMENTATION
Rack Requirements for a QFX3600 or QFX3600-I Device | 112
Cabinet Requirements for a QFX3600 or QFX3600-I Device | 118
General Site Guidelines
Rack-Mounting and Cabinet-Mounting Warnings | 224
124
