Table 99: Uplink Port LEDs on QSFP+ Uplink Ports on a QFX3500 Device (continued)
DescriptionStateColorLED
No transceiver is installed in the port, or the transceiver is not
supported.
OffUnlitStatus
A transceiver is installed in the port.On steadilyGreen
RELATED DOCUMENTATION
Rear Panel of a QFX3500 Device
Installing a Transceiver in a QFX Series Device | 481
Connecting a Fiber-Optic Cable to a QFX Series Device | 488
Fan Tray LED on a QFX3500 Device

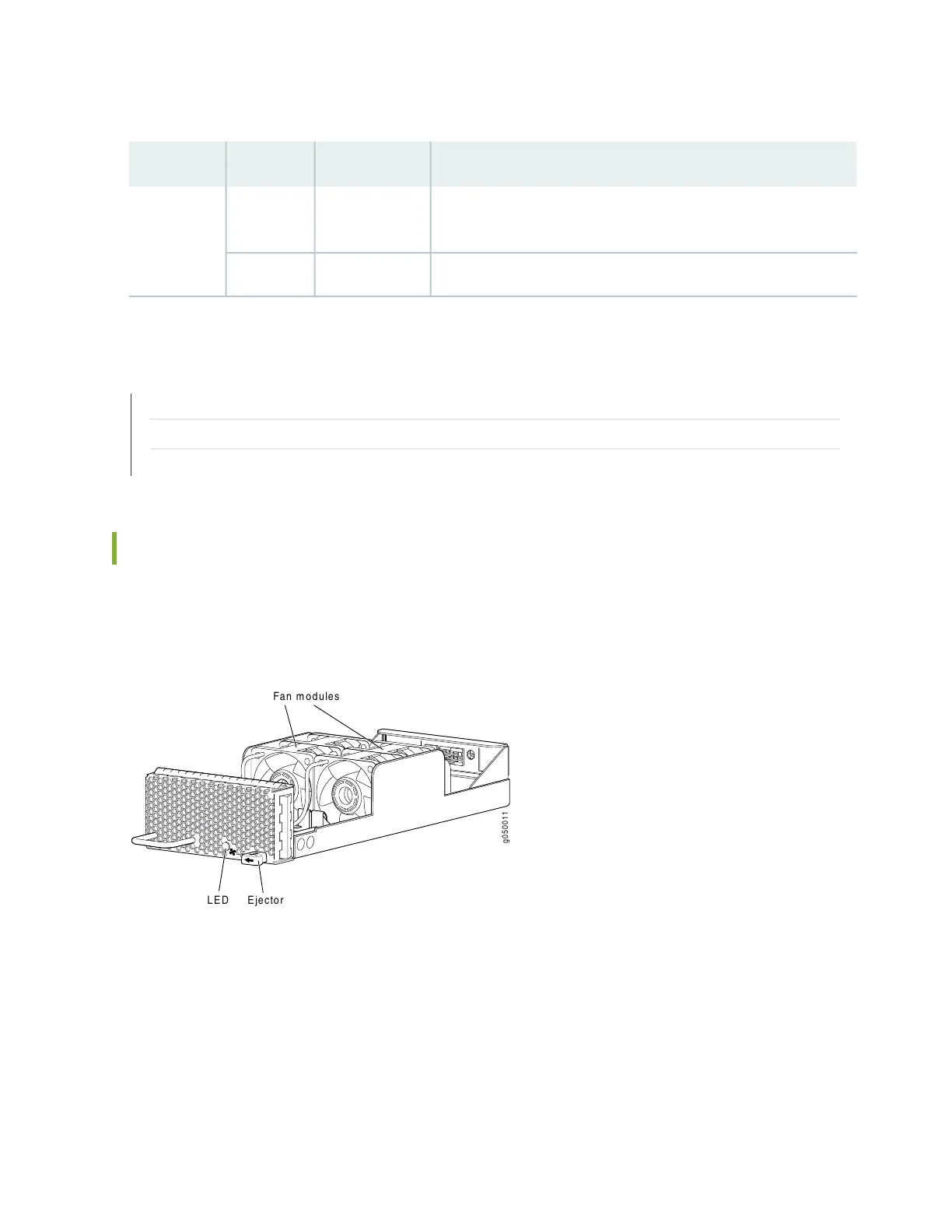

Figure 201 on page 532 shows the location of the LED on the fan tray.
Figure 201: Fan Tray LED in a QFX3500 Device
g050011
Fan modules
EjectorLED
Table 86 on page 514 describes the function of the fan tray LED.
