Management Port LEDs on a QFX3500 Device
The management ports (labeled C0 and C1) on a QFX3500 device have two LEDs that indicate link speed
and activity (see Figure 198 on page 529).
NOTE: Figure 198 on page 529 depicts the 1000BASE-T management ports. The LEDs on the
SFP management ports are identical.

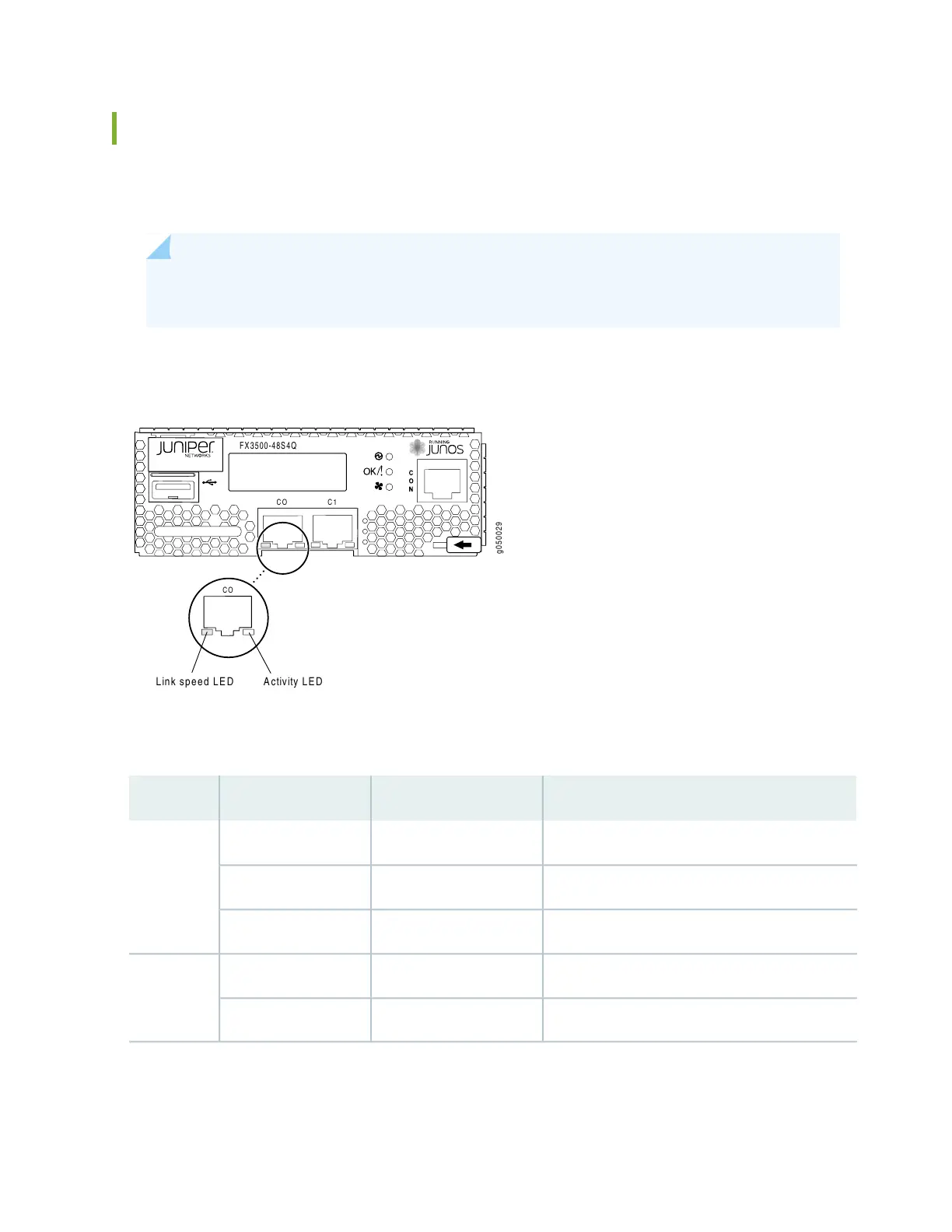

Figure 198: Management Port LEDs on a QFX3500 Device
FX3500-48S4Q
CO
CO
C1
g050029
Link speed LED Activity LED
Table 97 on page 529 describes the management port LEDs.
Table 97: Management Port LEDs on a QFX3500 Device
DescriptionStateColorLED
The port is not active.OffUnlitLink speed
1-Gbps link is established.On steadilyGreen
10/100-Mbps link is established.On steadilyAmber
There is no activity on the link.OffUnlitActivity
There is activity on the link.FlickeringGreen
