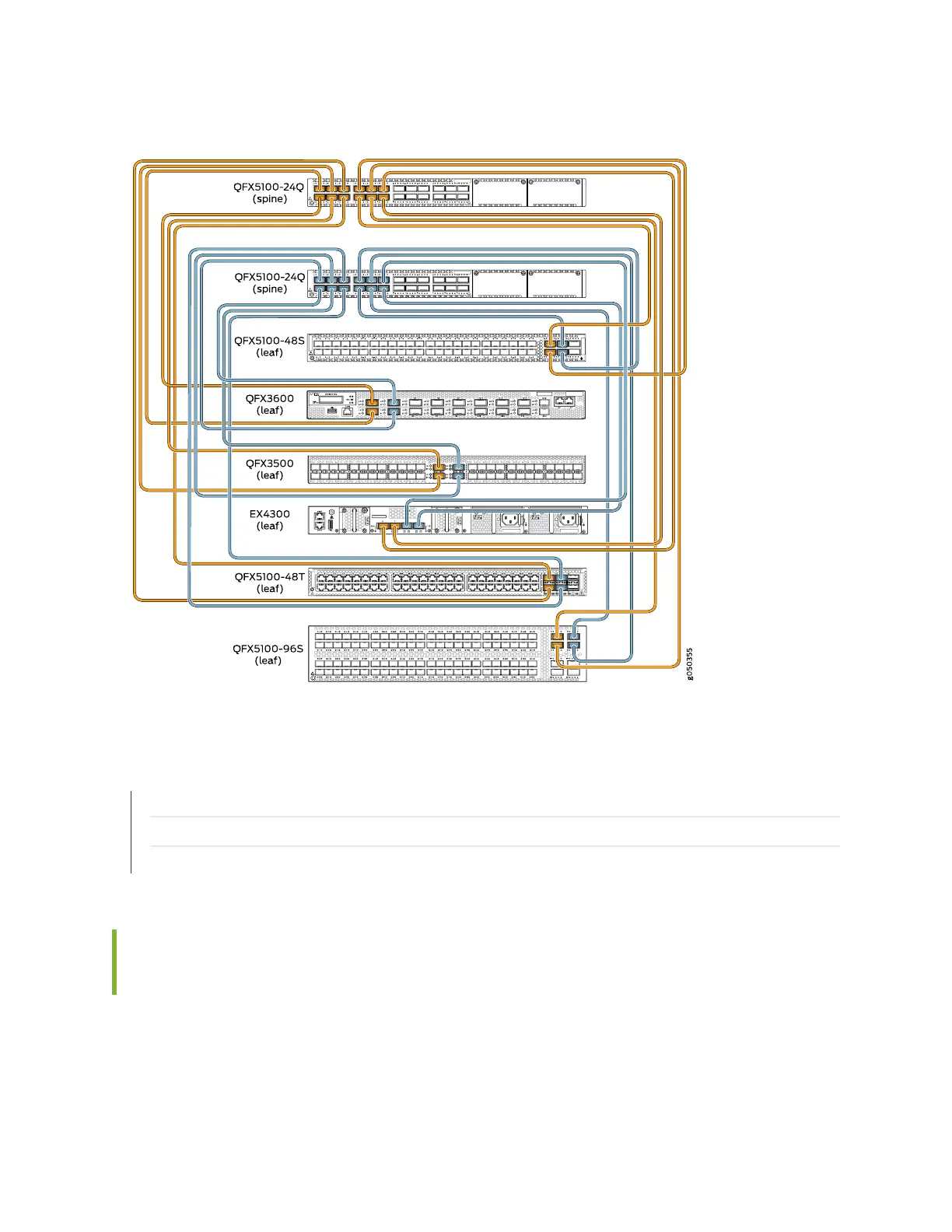

Figure 133: QFX5100-24Q as Spine and QFX5100-48S as Leaf Devices in a QFX5100 VCF
RELATED DOCUMENTATION
Virtual Chassis Fabric Hardware Overview | 8
Plan a Virtual Chassis Fabric Deployment | 87
Connecting QFX5110 in a QFX5110 Virtual Chassis Fabric | 385
Connecting a QFX3500 or QFX3600 Switch in a QFX5100 Virtual Chassis
Fabric
A Juniper Networks QFX5100 Virtual Chassis Fabric (VCF) is constructed using a spine-and-leaf architecture
and topology. In the spine-and-leaf architecture, each spine device is interconnected to each leaf device.
A VCF supports up to 20 total devices, and up to 4 devices can be configured into spine devices. QFX3500
