1. Attach the grounding strap to your bare wrist and to a site ESD point.
2. Ensure that the power supplies are fully inserted in the chassis and the latches are secure. If only one
power supply is installed, ensure a that blank cover panel is installed over the second power supply
slot.
3. Locate the power cord or cords shipped with the device; the cords have plugs appropriate for your
geographical location. See “AC Power Cord Specifications for a QFX Series Device” on page 154.
WARNING: Ensure that the power cord does not block access to device components
or drape where people can trip on it.
4. Connect each power supply to the power sources. Insert the coupler end of the power cord into the
AC power cord inlet on the AC power supply faceplate.
5. Push the power cord retainer onto the power cord (see Figure 87 on page 311 or Figure 88 on page 311).

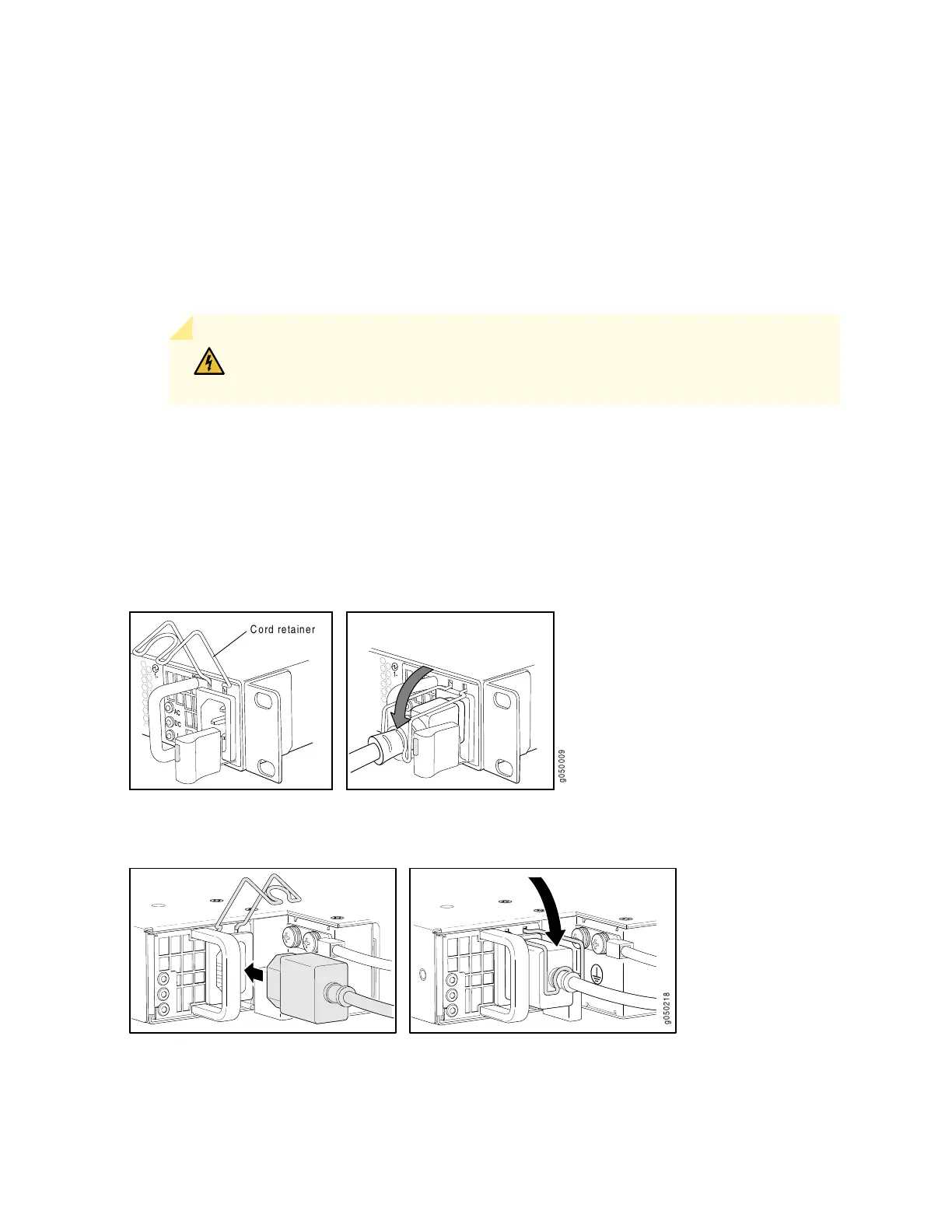

Figure 106: Connecting an AC Power Cord to an AC Power Supply in a QFX3500 Device
AC
DC
!
g050009
Cord retainer
Figure 107: Connecting an AC Power Cord to an AC Power Supply in a QFX3600 or QFX3600-I Device
6. If the AC power source outlet has a power switch, set it to the OFF (O) position.
