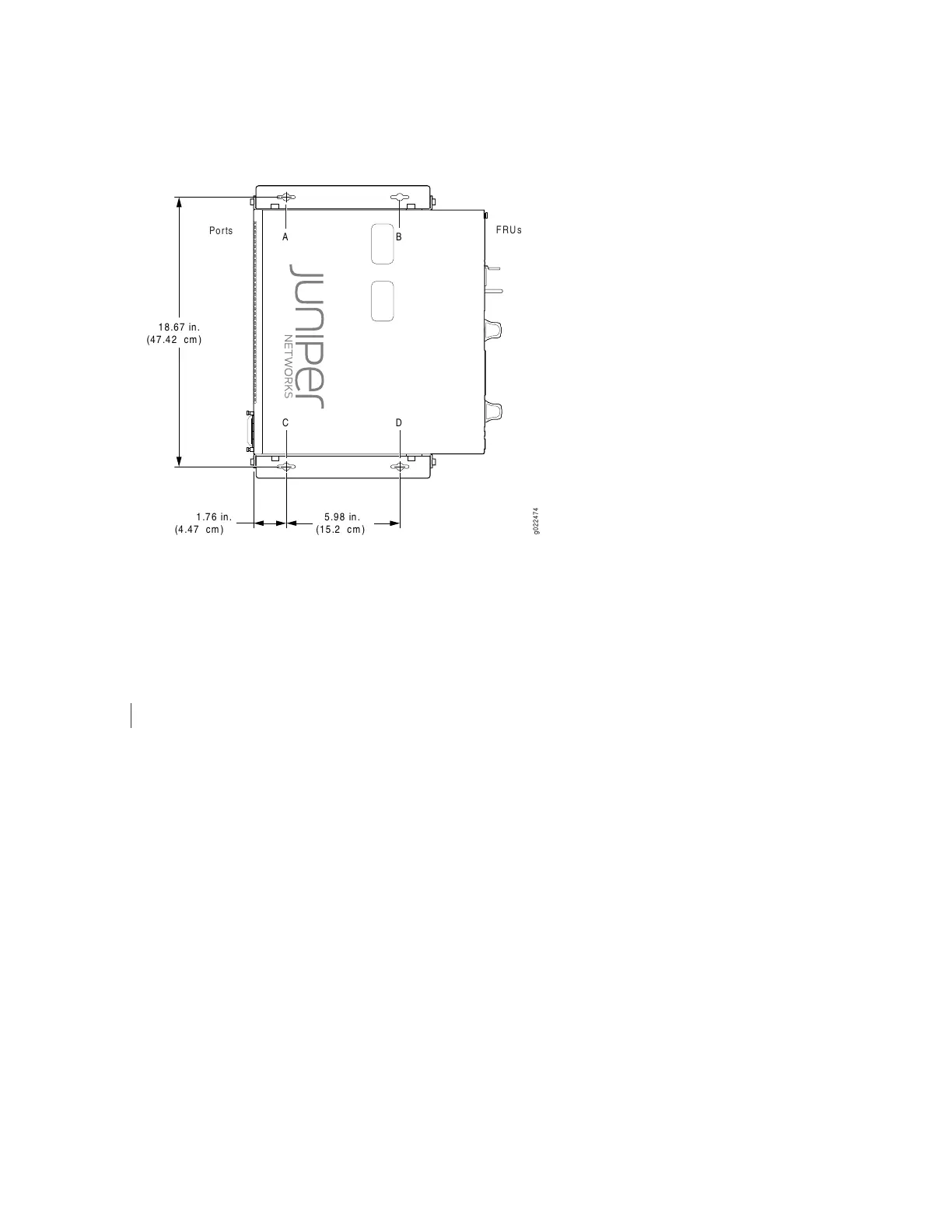

Figure 129: Mounting EX4300-48MP and EX4300-48MP-S Switches on a Wall with the Front Panel

Pointing to the Left Side

g022474

18.67 in.

(47.42 cm)

5.98 in.

(15.2 cm)

1.76 in.

(4.47 cm)

FRUs

Ports

5. Tighten the mounting screws by using the screwdriver.

RELATED DOCUMENTATION

Wall-Mounting Warning for EX4300 Switches | 239
