5. Pull firmly to slide the fan module halfway out of the chassis.
6. When the fan stop spinning, slide the fan module completely out of the chassis.
7. Place the fan module in the antistatic bag or on the antistatic mat placed on a flat, stable surface.

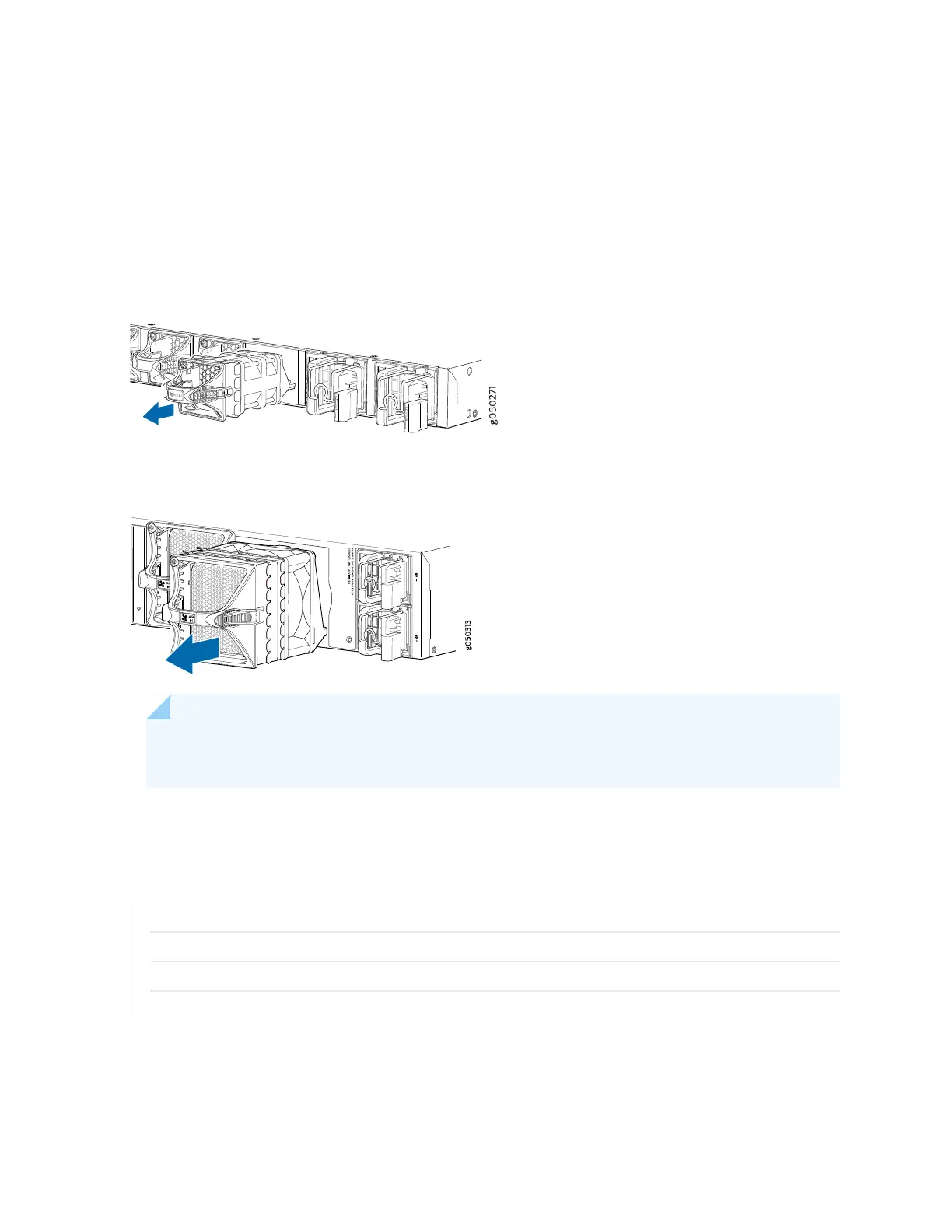

Figure 154: Removing a Fan Module from a 1 U QFX5100 Device
QFX5100-48S
RUNNING JUN OS
Figure 155: Removing a Fan Module from a 2 U QFX5100-96S Device
NOTE: When a fan module is removed, the CLI message Fan/Blower is Absent is logged in the
system log, and the system raises a minor alarm.
RELATED DOCUMENTATION
Cooling System and Airflow in a QFX5100 Device
Field-Replaceable Units in a QFX5100 Device
Management Panel of a QFX5100 Device
Installing a Fan Module in a QFX5100 Device | 440
