Keithley 2450 User Manual

M
odel 2450 Interactive SourceMeter® Instrument Reference Manual Section 2:
General operation
2450-901-01 Rev. B/September 2013 2-77

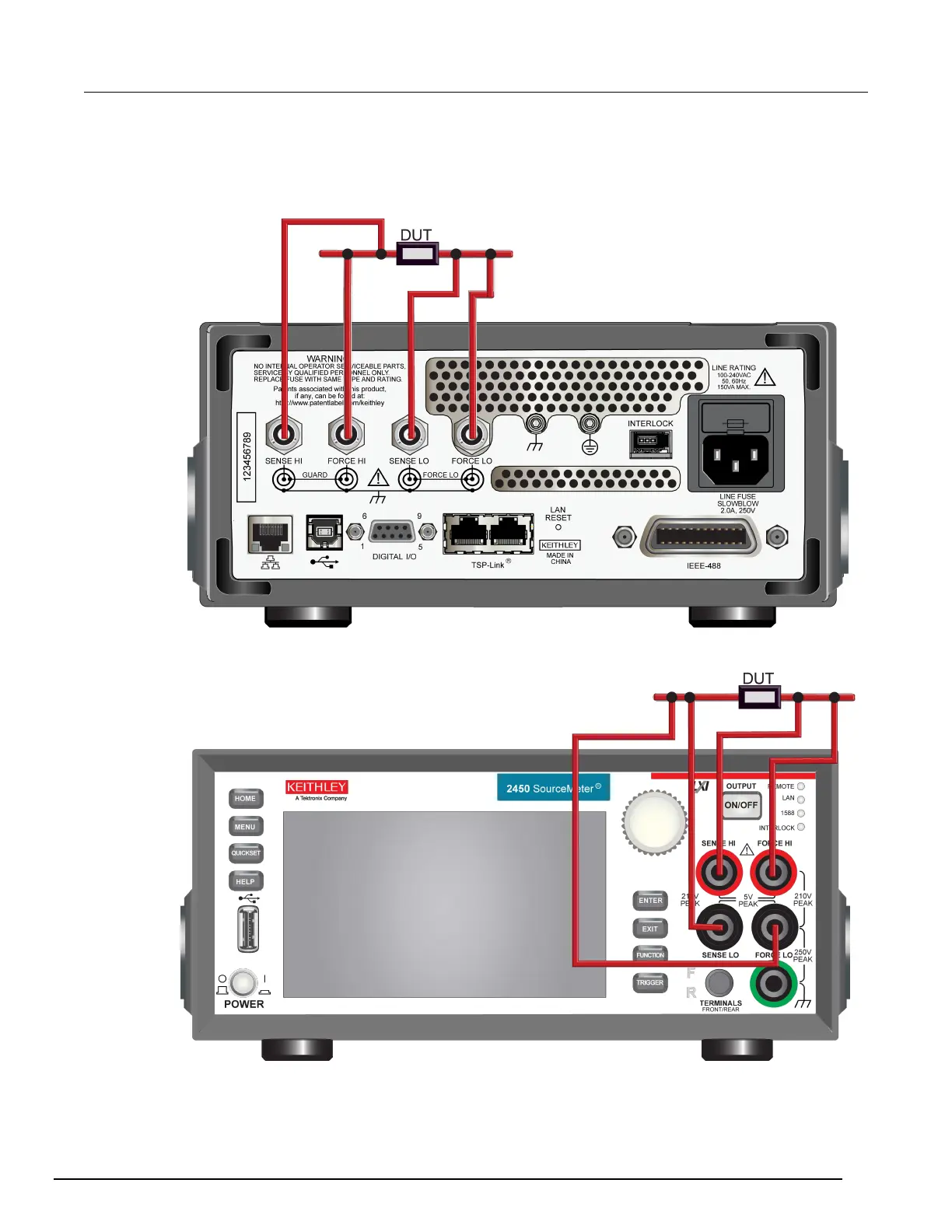

Four-wire remote sense connection drawings
Always connect the sense lines as close as possible to the device under test.
Figure 49: Model 2450 rear panel 4-wire remote sense connections
Figure 50: Model 2450 front panel 4-wire remote sense connections

Keithley 2450 Specifications

General

Model	2450
Category	SourceMeter
Voltage Source Range	±200 V
Current Source Range	±1 A
DC Voltage	200 V
DC Current	1 A
Power Output	20 W
Resolution	6.5 digits
Display	5-inch capacitive touchscreen
Operating Temperature	0°C to 50°C
Connectivity	USB, LAN, GPIB
Dimensions	213 mm × 88 mm × 370 mm
